TECHNICAL SPECIFICATIONS

TAIPAN     TAIPAN Y     TAIPAN Y V2     TAIPAN K     HANDLE BAR SWITCH     UC BRIDGE

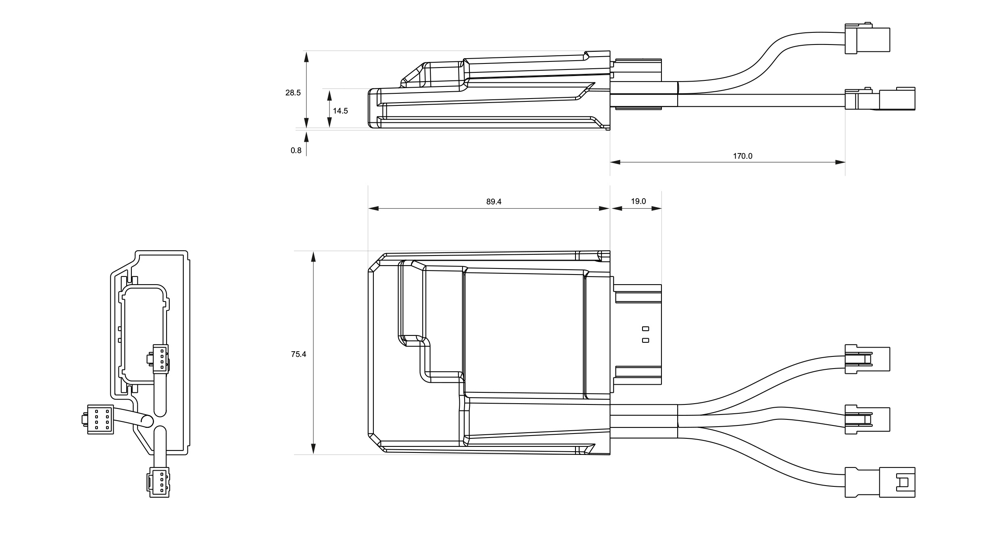

TAIPAN
TAIPAN TECH SPECS
AiM ECU Taipan
Compatible models
Bike models
Brand
Type
Race
From Year
To Year
GASGAS
MC 250F
Cross
2021
2024
MC 450F
Cross
2021
2024
EC 250F
Enduro
2021
2023
EC 350F
Enduro
2021
2023
HONDA
CRF 250R
Cross
2019
2024
CRF 450R
Cross
2019
2024
CRF 450L
Enduro
2021
2023
CRF 450X
Enduro
2021
2023
HUSQVARNA
FC 250
Cross
2019
2024
FC 350
Cross
2019
2024
FC 450
Enduro
2019
2024
FE 250
Enduro
2020
2023
FE 350
Enduro
2020
2023
FE 450
Enduro
2020
2023
FE 501
Enduro
2020
2023
FS 450
Supermoto
2019
2024
KAWASAKI
KX 250
Cross
2022
2023
KX 450
Cross
2019
2023


KTM
SX-F 250
Cross
2019
2024
SX-F 350
Cross
2019
2024
SX-F 450
Enduro
2019
2024
EXC-F 250
Enduro
2020
2023
EXC-F 350
Enduro
2020
2023
EXC-F 450
Enduro
2020
2023
EXC-F 500
Enduro
2020
2023
SMR 450
Supermoto
2019
2024
Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
Second injector driver for high impedance saturated injectors (12 Ohm)
1 low side driver (1A)
2 busses, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash etc.)
Power consumption 150 mA

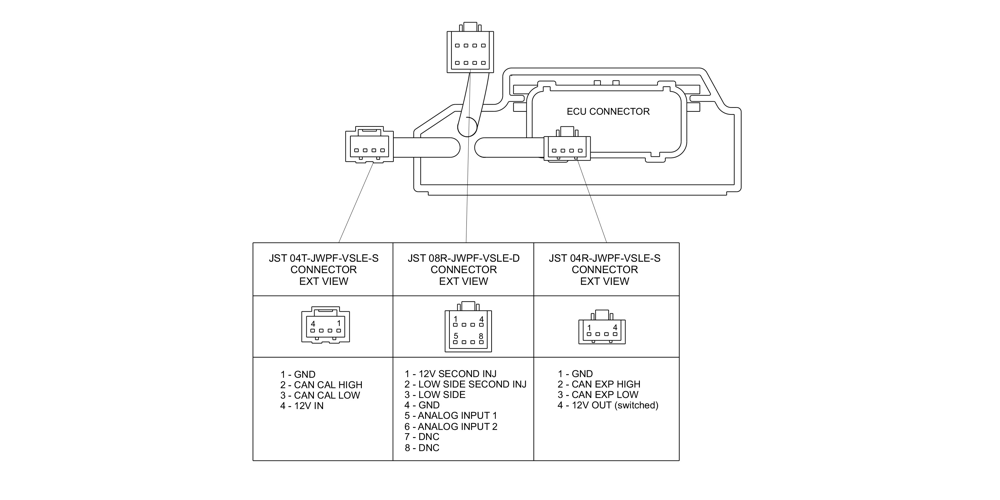

Connectors
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 JST 04R-JWPF-VSLE-S Connector
1 33 pin male Connector
Body
PA6 + 30% glass fiber
Dimensions
89.4x75.4x29.3 mm
Weight
260 g
Waterproof
IP67

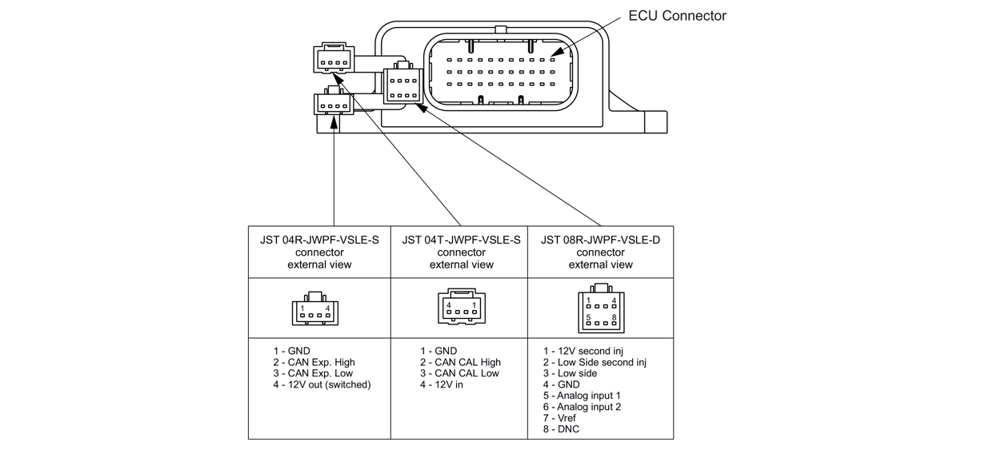

TAIPAN Y
TAIPAN Y TECH SPECS
AiM ECU Taipan Y Compatible models
Bike models
Brand
Type
Race
From Year
To Year
YAMAHA
YZ 250 F
Cross
2019
2023
YZ 450 F
Cross
2019
2022


Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
Second injector driver for high impedance saturated injectors (12 Ohm)
1 low side driver (1A)
2 CAN busses, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash etc.)
Power consumption 150 mA
Connectors
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 JST 04R-JWPF-VSLE-S Connector
1 33 pin male Connector
Body
PA6 + 30% glass fiber

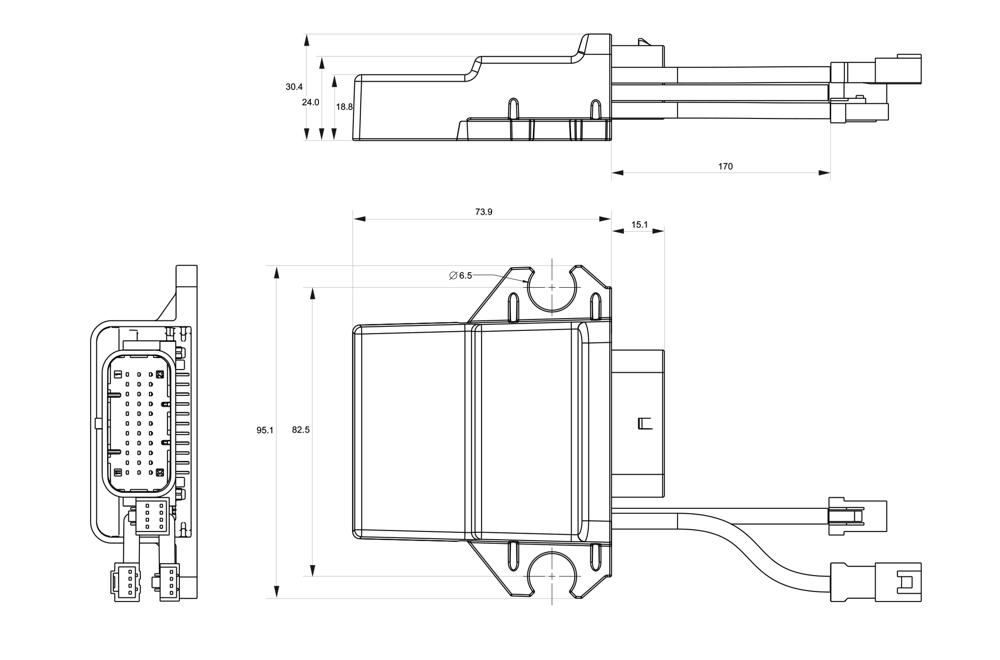

Dimensions
73.9x95.1x30.4 mm
Weight
230 g
Waterproof
IP67
TAIPAN Y V2
TAIPAN Y V2 TECH SPECS
AiM ECU Taipan Y v2
Compatible models
Bike models
Brand
Type
Race
From Year
To Year
YAMAHA
YZ 250 F
Cross
2024
YZ 450 F
Cross
2023
2024


Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
Second injector driver for high impedance saturated injectors (12 Ohm)
1 low side driver (1A)
1 CAN bus for calibration purposes
2 JST JWPF waterproof auxiliary connectors
Power consumption 150 mA
Connectors
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 39 pin male Connector
Body
PA6 + 30% glass fiber

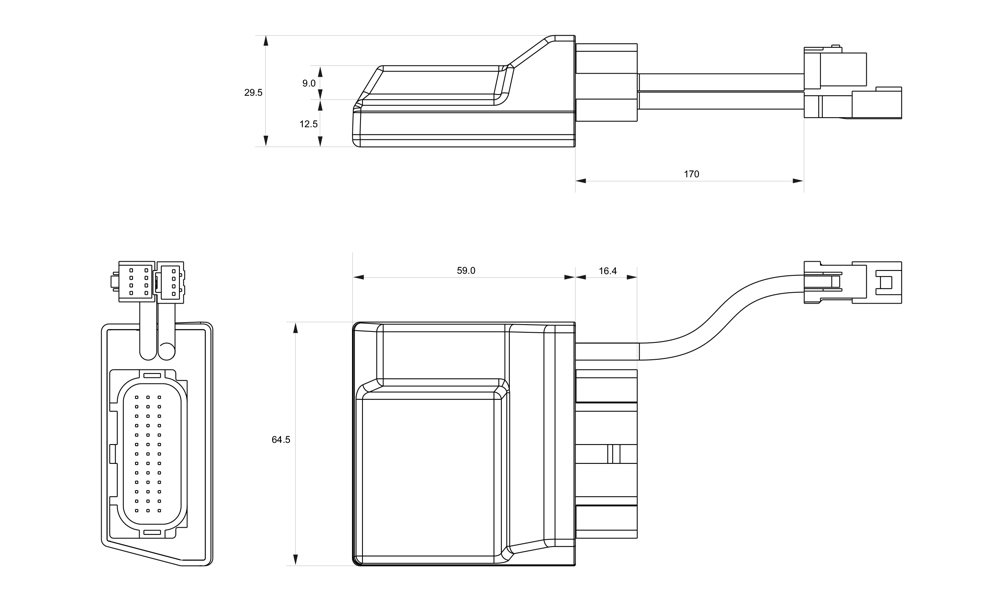

Dimensions
64.5x59x29.5 mm
Weight
150 g approx
Waterproof
IP67
TAIPAN K
TAIPAN K TECH SPECS
AiM ECU Taipan K
Compatible models
Bike models
Brand
Type
Race
Year
KTM
SX 250
Cross
2024



HUSQVARNA
TC 250
Cross
2024



GASGAS
MC 250
Cross
2024



Additional characteristics to the stock ECU:
Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
1 low side driver (1A)
1 CAN bus for calibration purposes
IMU
Pitch/Roll
Power consumption 150 mA

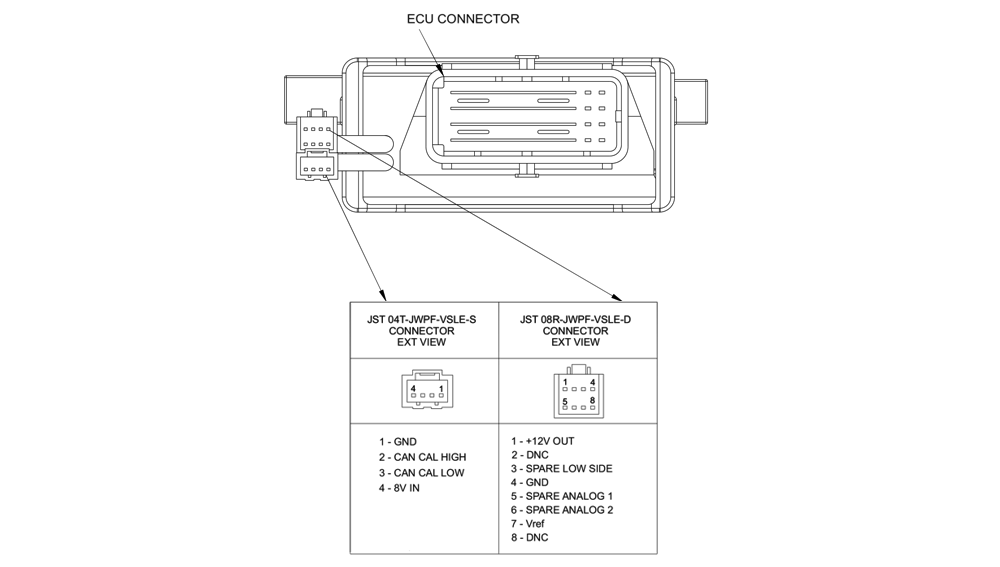

Connectors
1 JST 04T-JWPF-VSLE-S connector
1 JST 08R-JWPF-VSLE-D connector
1 64 pins male connector
Body
PA6 + 30% glass fiber + EPDM cover

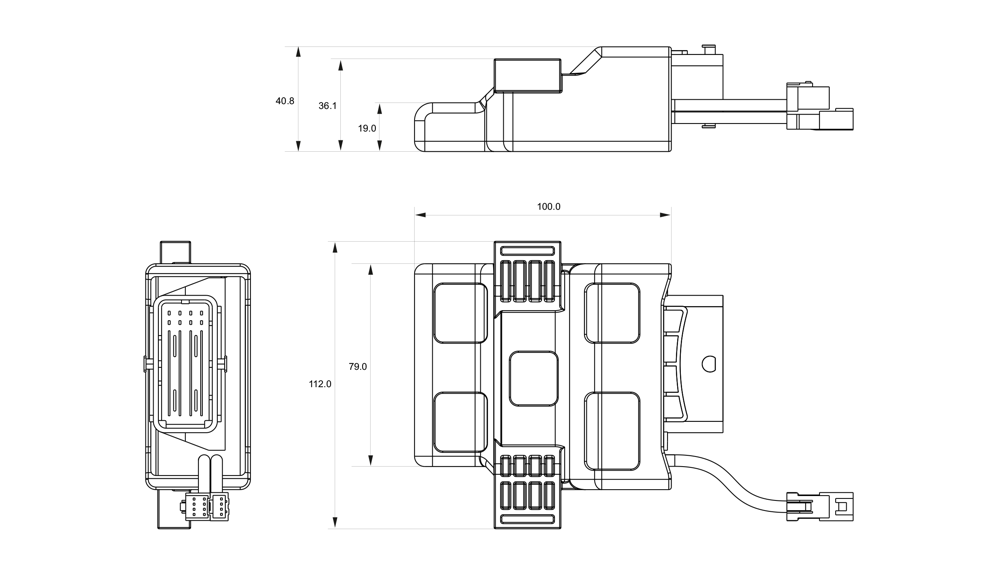

Dimensions
112x100x40.8 mm
Weight
390 g approx
Waterproof
IP67

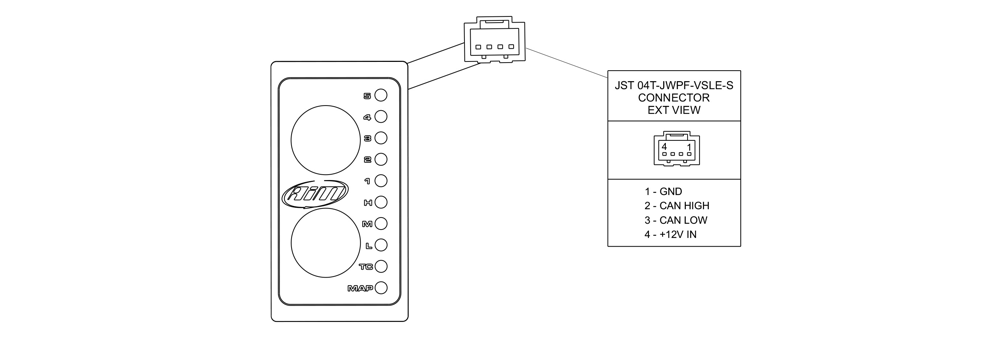

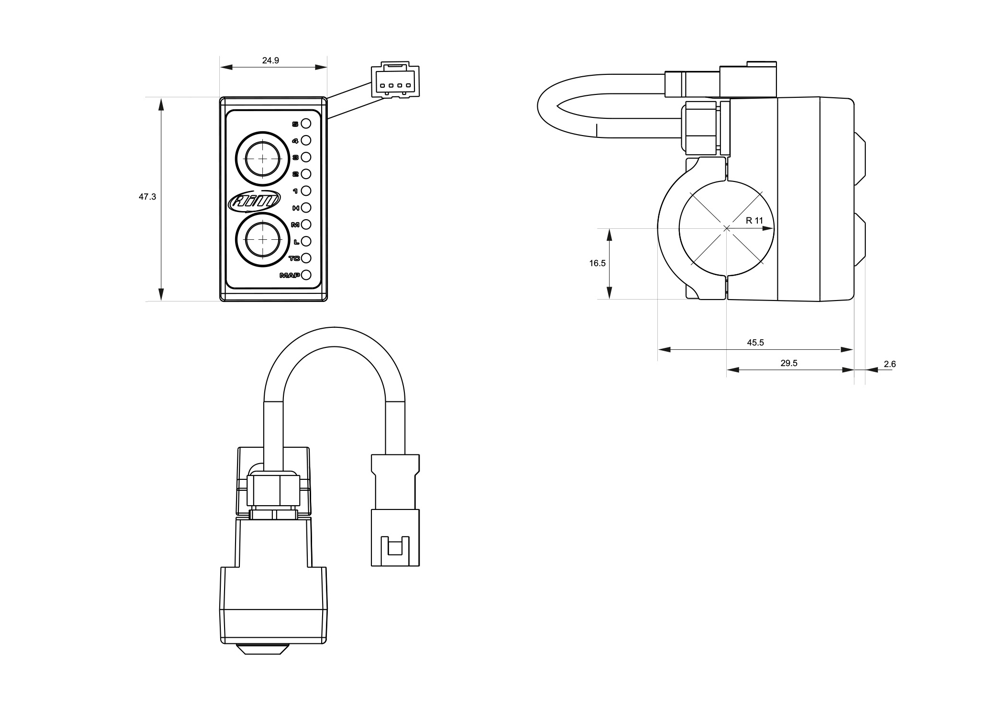

HANDLE BAR SWITCH
HANDLE BAR SWITCH TECH SPECS
JST waterproof connector for CAN Bus communication
 Connector
1 JST 04T-JWPF-VSLE-S Connector
 Body
PA6 + 30% glass fiber
 Dimensions
47.3x24.9x48.1 mm
 Waterproof
IP67
 Weight
70 g

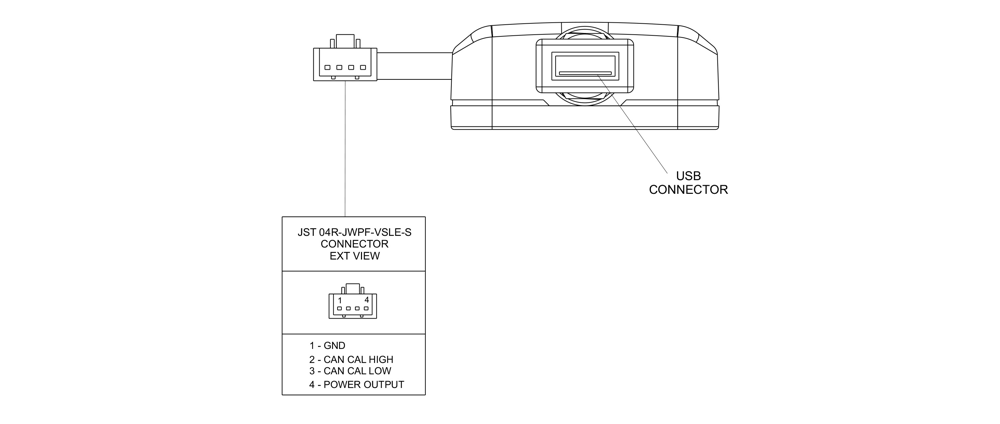

UC BRIDGE
UC BRIDGE TECH SPECS
 Connectors
1 USB connection for PC
1 JST 04R-JWPF-VSLE-S waterproof Connector for CAN Bus communication
 Body
PA6 + 30% glass fiber

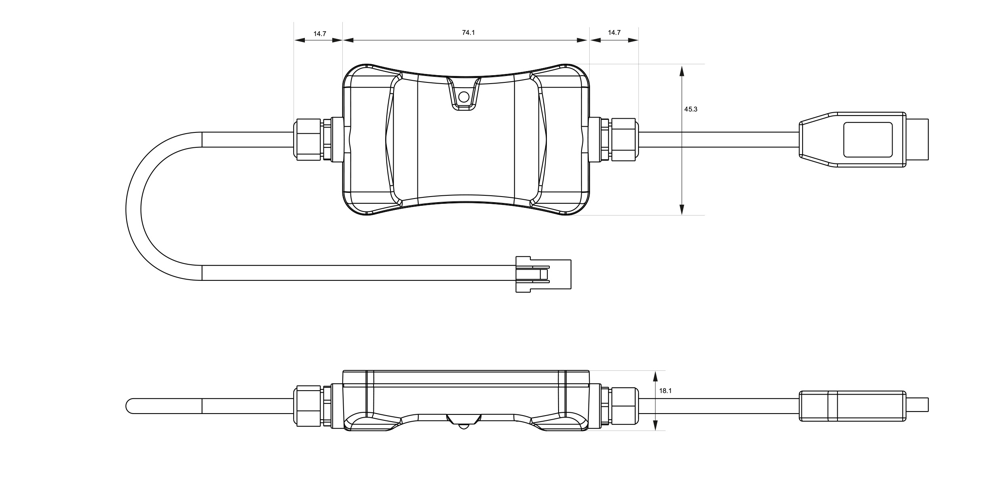

 Dimensions
103.5x45.3x18.1 mm
 Waterproof
IP65
 Weight
80 g
