MyChron5 660 |
|
Developed for Jr. Dragster. |
|
|
|
|
|
|
|
|
| MyChron5 660 is the most complete system to sample, record and view all data for your Jr. Dragster and is NHRA homologated. |
|
Data recording
As a standalone unit, MyChron5 660 records: |
| |
 |
Engine RPM |
|
|
Jackshaft RPM |
|
|
Cylinder Head Temperature |
|
|
Exhaust Gas Temperature |
|
|
Speed
(computed out of jackshaft RPM and final drive ratio) |
|
|
|
CVT and overdrive
(computed out of engine RPM and jack shaft RPM) |
|
|
Linear Acceleration
(computed out of speed) |
|
|
|
|
|
|
|
|
|

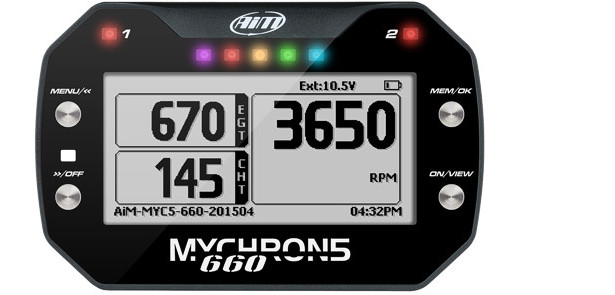

Real time display
The three most important data for staging your Jr. Dragster - RPM, EGT and CHT - are clearly shown on the large LCD display. |
|
Steady Stage
Below 5,000 RPM the display will average the RPM itself with a dedicated stabilizer. The result is a much more consistent number for your carburetor tuning. |
|
|
 |
|
|
|
|
|

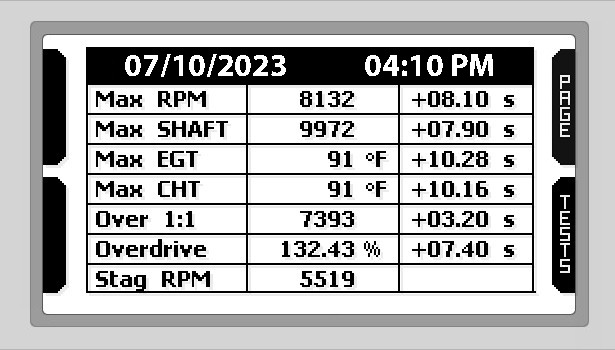

Post Run Review
At the touch button, you'll get:
|
 |
Maximums (and time of triggering) for engine RPM, jack shaft RPM, overdrive and temperatures |
|
|
Total recorded run time |
|
|
Overdrive 1:1 (when engine RPM and jackshaft RPM cross each other) |
|
|
Staging RPM |
|
|
 |
|
|

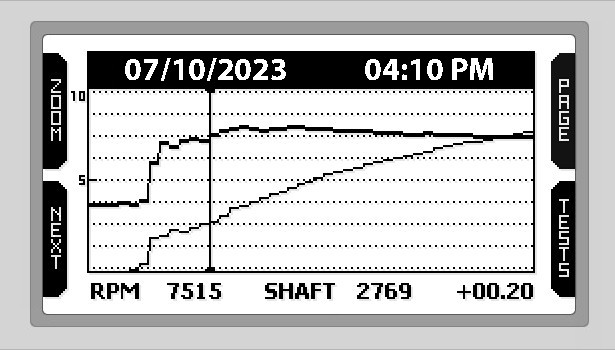

After-Test Graphs
With MyChron5 660 you'll get a clear graphical display of RPM and jack shaft, as well as Exhaust Gas and Cylinder Head Temperatures, and even CVT, Overdrive channels and calculated wheel speed. |
|
 |
|
|
|
|
|
 |
|

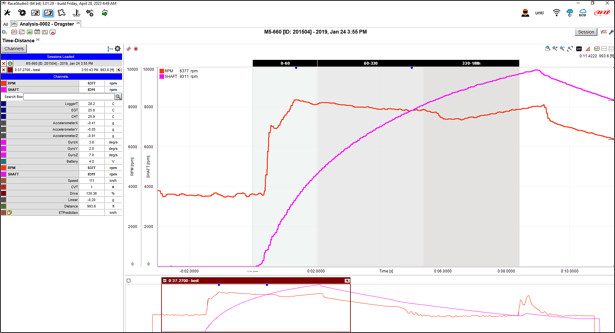

Race Studio 3 Analysis
Data from your MyChron5 660 can be analysed using the powerful AiM free software Race Studio 3 providing time plots and setup sheets, expandable at your will with histograms and scatter plots. |
|
|
|
|
|
 |
|
|
|
|
|

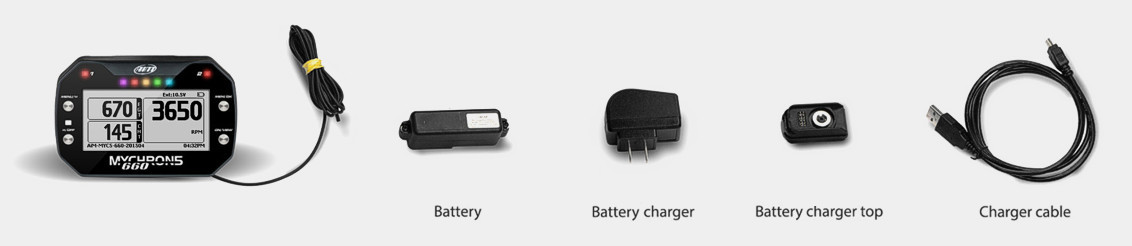

| WHAT'S IN THE KIT |
|
 |
|
 |
|
|
|
|
|
|
|
