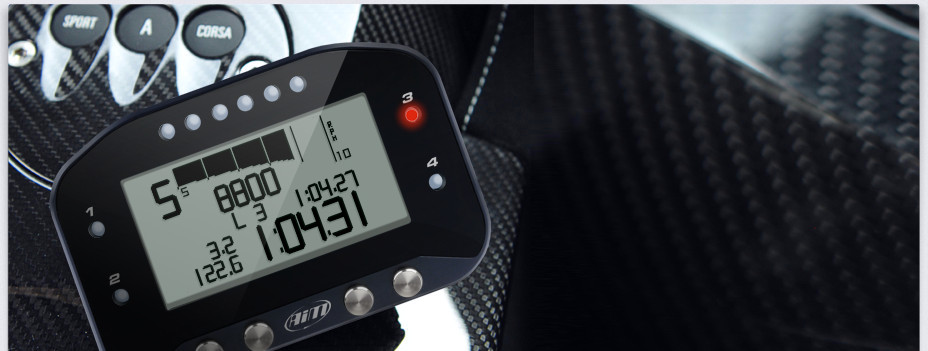

AiM G-Dash Digital Display for EVO4
A small, flexible, fully configurable graphical display, showing the data sampled by EVO4 with a precise and enjoyable visualization.
G-Dash and EVO4
With G-Dash you keep constantly under control lap times and all values coming from the ECU, from the accelerometers and from the GPS built in EVO4, besides receiving information from the on-board camera SmartyCam HD.

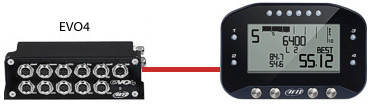

Connection
scheme
Up to 9 pages showing the data you wish, the way you wish
G-Dash swaps among pages showing lap times and data in a 100% customizable way: just choose your data and create your pages displaying up to 4 fields each.
The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and two channels of your choice.
Screenshot 6 Screenshot 2
Custom page with two fields
Custom page with four fields
Screenshot 1
RPM and Lap Time page
Lap times
You can visualize the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).
Screenshot 3 Screenshot 4
Rolling
Static
Screenshot 5
Predictive as difference
vs. Best
Configure your LEDs one by one
Six RGB shift lights can be configured for each gear, choosing LED color and RPM threshold values which will turn it on/off.
Visual G-Dash 1 Visual G-Dash 2
Configure the RGB shift lights
Select one among seven colors

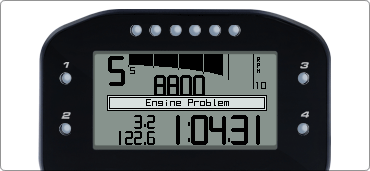

Alarms are managed in a very flexible way: you can choose the situation that generates the alarm, the LED behavior (blinking frequency and color) when the alarm appears and the conditions for its switch-off. A warning message can also be shown.
Highlight  your performance
Recall a data summary at the end of each session: the four fastest laps, total running time and total run distance, together with max. RPM and speed values.
You can also see a list of all the laps of the session, with their times and min/max speed.
Screenshot 8 Screenshot 9
Easy configuration
Configuration of Shift lights, alarms and customized data pages is intuitive and immediate using the dedicated Race Studio 2 software or even with few keyboard clicks.
More info
Compact and resistant chassis
Its small dimension makes it particularly suitable for small cockpit installation (i.e. bikes, formula cars).
Totally in aluminum, with edge-to-edge glass and metallic pushbuttons,
G-Dash is robust and fully waterproof.
