GPS09c
The GPS for motorsport
GPS09c is proposed in the following versions:

FEATURES
CONNECTIONS
CONNECTABLE TO
AVAILABLE
MECHANICAL VERSIONS
GPS receiver
6 axis 100 Hz inertial platform
CAN
RS232
AiM
network
Other
devices
Normal
Roof
installation

   GPS09c
   GPS09c Pro
   GPS09c Open
   GPS09c Pro Open
Roof version offers an easier and clean installation
on the external surface of the vehicle - no more issue
with the GPS signal - avoiding problems of application
inside certain cockpit.
TECHNICAL SPECIFICATIONS

GPS09c
GPS09c Pro
GPS09c Open
GPS09c Pro Open
   GPS
25 Hz
   Constellation
4 (GPS, GLONASS, Galileo, BeiDou)
   Accuracy
0.5 m CEP
   Cold start
30 seconds TTFF
   Hot start
1 second
   Antenna
Internal, 22 mm
   External power
5÷15 V
   Connection
AiM CAN
CAN, RS232
   Inertial platform
-
100 Hz 6 axis
-
100 Hz 6 axis
   Dimensions
53.2 x 53.8 x 19.7 mm (53.2 x 53.8 x 37.2 mm for Roof version)
   Weight
60.5 g (100 g for Roof version)

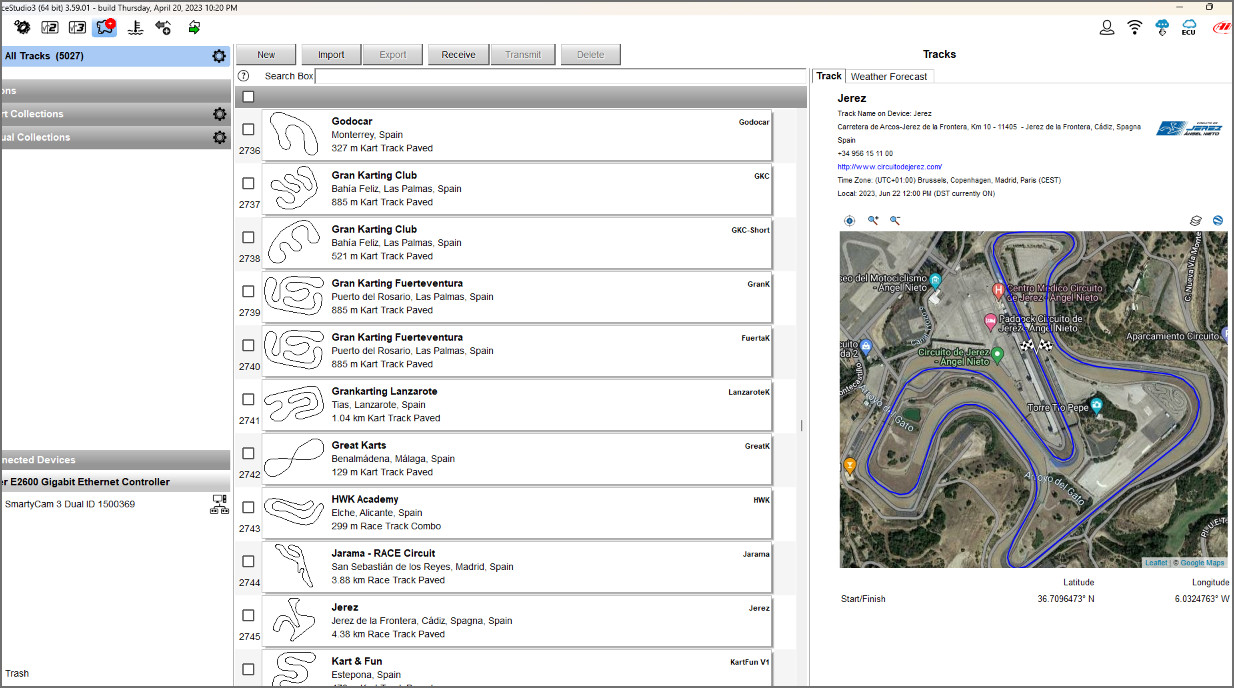

Track database

GPS09c is the basis of lap time and split time calculations of all AiM systems. They come with start/finish line coordinates of more than four thousand tracks, so your dash or logger automatically recognizes the track you are racing on, and will calculate lap times and split times. What if the track is not in the database? No problem, your system will recognizes a new track and then will calculate lap times.
GPS channels available at 25 Hz:
Altitude
Latitude
Longitude
Sats number
Pos Accuracy
Speed Accuracy
GPS Lateral acceleration
GPS Linear acceleration
GPS Heading
GPS Yaw rate
GPS Hour
GPS Min
GPS Sec
GPS Hundredths of a second
Year
Month
Day
Week number
ITOW
Unix Time

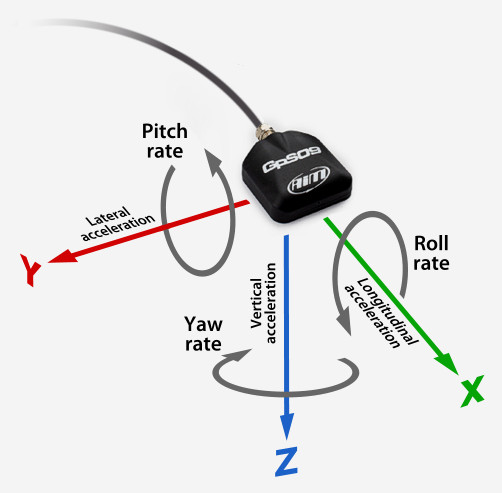

IMU data available through CAN connection at 100 Hz (GPS09c Pro and GPS09c Pro Open only):
Acceleration X
Acceleration Y
Acceleration Z
Pitch rate
Yaw rate
Roll rate

OPEN VERSIONS
GPS09c Open and Pro Open are developed to be compatible with all AiM or not AiM systems.
They offer three output streams; for not AiM systems you can configure the protocol for a CAN or RS232.
OPEN RS232
CONNECTION
Freely user configurable
OPEN CAN
CONNECTION
Freely user configurable
AIM CAN
CONNECTION
To be connected as expansion
using the AiM CAN network
A dedicated USB cable is available for the configuration,
through the RaceStudio 3 software.
EASY CONFIGURATION WITH RACESTUDIO 3

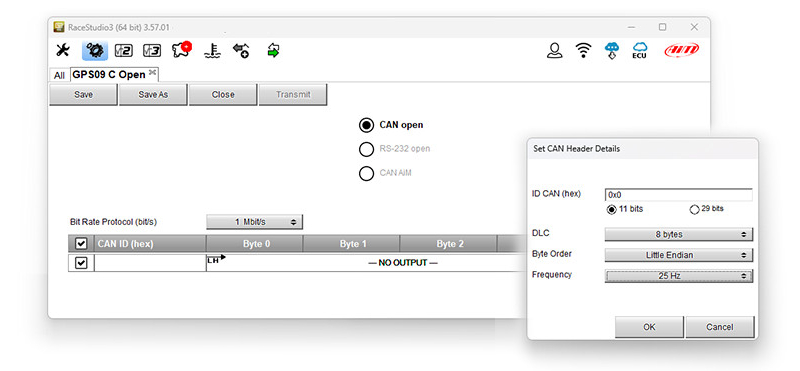

CAN connection
AiM RaceStudio 3 software offers the possibility to freely configure the CAN messages.
It is possible to set:
Baud rate
ID
DLC (1-8 bytes)
Byte order
(little endian, big endian)
Messages frequency

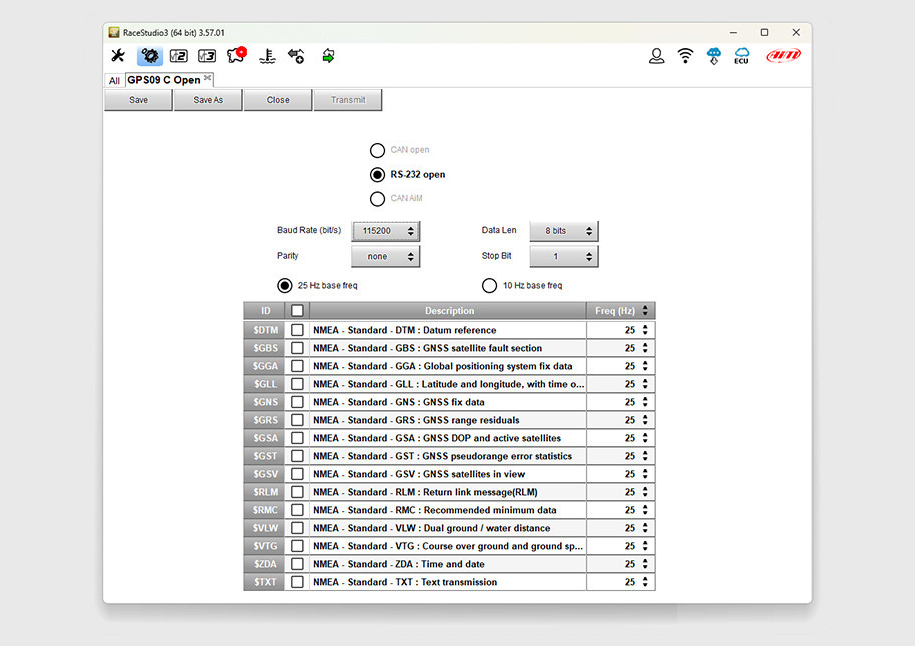

RS232 Connection
GPS09c Open may be configured for transmitting the GPS NMEA message you need through an RS232 stream.
NMEA DTM
NMEA GBS
NMEA GGA
NMEA GLL
NMEA GNS
NMEA GRS
NMEA GSA
NMEA GST
NMEA GSV
NMEA RLM
NMEA RMC
NMEA VLW
NMEA VTG
NMEA ZDA
NMEA TXT
The meaning of all these NMEA messages is described in www.nmea.org.
AiM compatible models
GPS09c range can be connected to the following AiM devices:
MX Series
SmartyCam 3 Series*
Loggers*
Laptimers
Power distribution modules
* not compatible with Pro and Pro Open versions.
