MXL is a complete, modular dash logger: for its features it is appreciated by more than 15,000 racers all over the world.
MXL display is fully configurable: it shows the data in different customizable pages, features alarms and shift lights. Lap times are sampled either with optical receiver and via external GPS. They can be set in different ways: static, rolling, predicted and with split times.
MXL receives data from analog and digital sensors, from expansion modules and also from your Engine Control Unit, thanks to hundreds of specific protocols developed by AiM.
All data can be loaded on PC and analyzed with the powerful professional Race Studio 2 software.
MXL Pro05 back
MXL Pro05 back with Deutsch connectors
MXL Pro05 and MXL Pista
Designed to sample and record data, MXL Pista and Pro05 show max/min RPMs, speed and a min. of 8 customizable channels (i.e. water temp., oil pressure, suspension and steering potentiometers).
Pro05 features more memory than Pista, four speed channels instead of one, 12 analog inputs instead of 8.
Deutsch Motor Sport connectors make Pro05 more fit to a professional use.
A wide integrated display with alarm leds, icons and pushbuttons
With its wide backlighted display, easy to read in all light conditions, MXL shows an amazing "racing" look.
All information are configurable: i.e. you can see - together with RPM scale - speed, water temp. and oil pressure, lap time and Best Lap.
Scrolling the menu four more values can be configured and displayed.
Moreover, it is also possible to set lap time thresholds for shift lights alert.
Read your sensors in 4 different ways
With its dedicated inputs MXL enables connection to the desired sensors:

8 analog channels (12 in Pro05)
with freely configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV or thermocouple inputs, used to sample values coming from i.e. temperature, pressure, suspension sensors.

1 speed input (4 in Pro05)
if connection to the Engine Control Unit (ECU) is not possible. MXL Pro05, with 4 speed inputs, enables sophisticated analysis of the different 4 wheel speeds.

1 RPM input
to manage square wave signals and pulse signals coming from the coil (low voltage).

1 integrated mono-axial accelerometer
samples centrifugal forces acting on your car in each single turn of the track.

ECU connection
MXL, being compatible with hundreds of ECUs , offers huge customization opportunities thanks to the ample protocol database, constantly updated, freely downloadable from this website.
Expand the system according to your needs
MXL is a modular system, offering the possibility to increase the number of channels with a CAN connection to expansions like:
Channel Expansion Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub TC Hub
It adds 4 K thermocouples.
LCU-One Lambda Controller LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
SmartyCam HD cameras SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Up to 8 different modules can be connected to MXL, resulting in a system which fits all desired applications.
GPS Module: automatic lap times  and track position analysis
GPS05 Module The powerful GPS05 Module - connectable via CAN - makes track position analysis possible, together with a precise lap time calculation.
The new GPS Manager software will transmit your tracklist to the logger: GPS05 Module will locate its position, identify track-line coordinates and start immediately sampling lap and split times.
GPS Manager

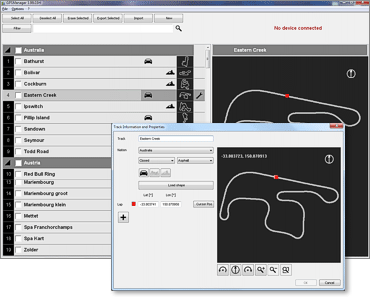

GPS Manager screenshot
Download to your PC and analyse your data with Race Studio 2 software
Data recorded by MXL will be downloaded via USB and analyzed with the professional Race Studio software: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
Race Studio 2 Analisi

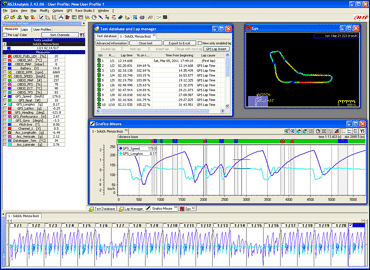

Race Studio Analisi screenshot
