TECHNICAL SPECIFICATIONS

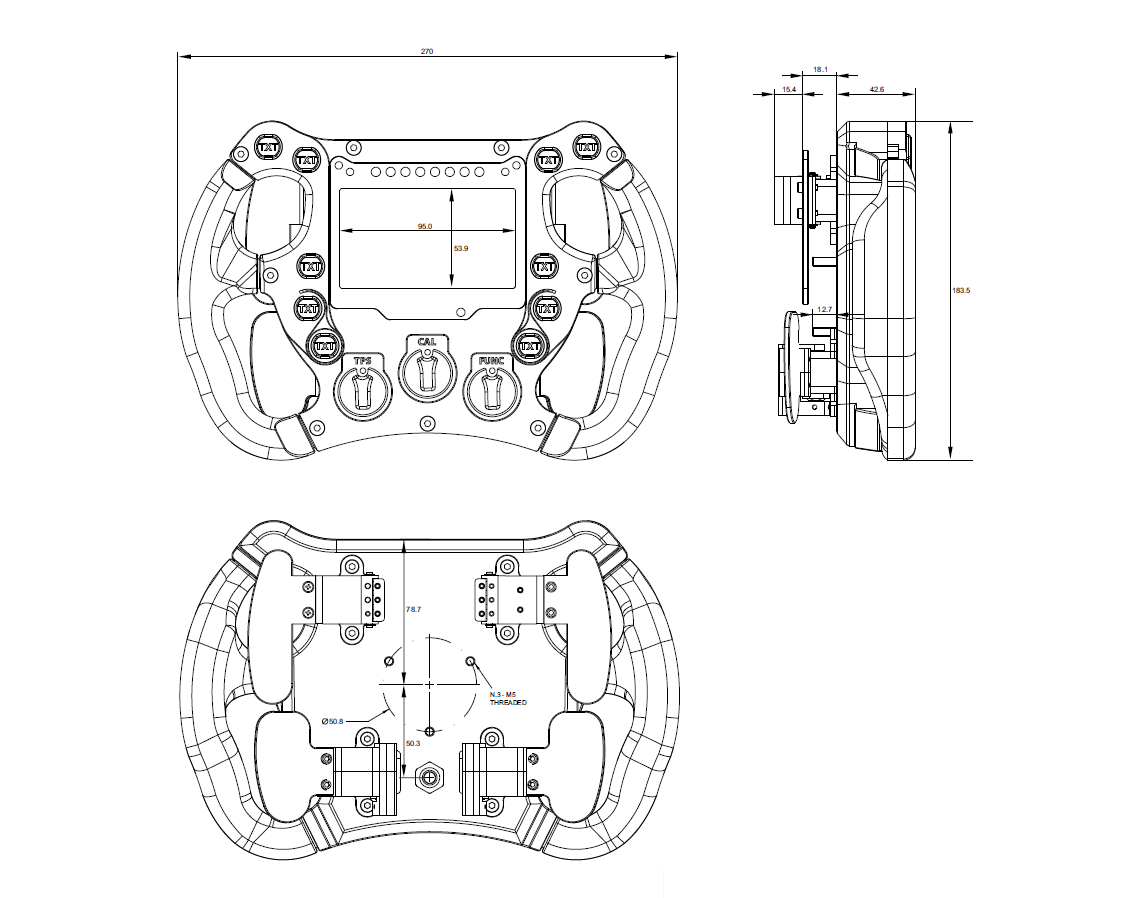

WS4 270

 Display
4.3 TFT
 Resolution
800x480 pixels
 Contrast
800:1
 Brightness
800 cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Alarm display icons
Yes, freely configurable
 Shift lights
8 configurable RGB LEDs
 Alarm LEDs
4 configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN
 ECU compatibility
+ 1,000 industry leading ECUs
 Expansion CAN connection
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, RIO02, GS Dash, Memory Module
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
10 pushbuttons + 3 rotary switches (all with RGB backlights)
 Connectors
1 Deutsch Autosport 22 pin male connector
 Dimensions
270 x 183.5 x 42.6 mm
 Weight
2,400 g
 Power consumption
500 mA
 Waterproof
IP65

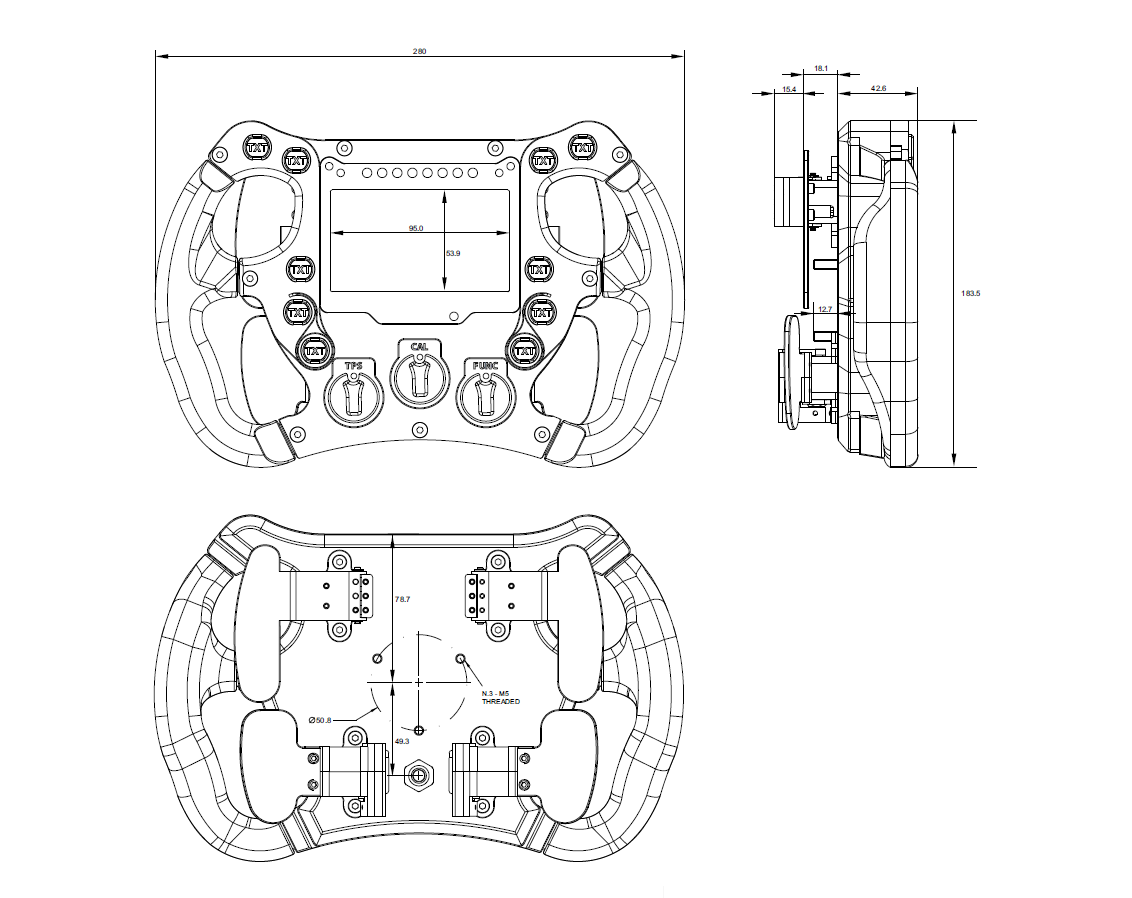

WS4 280

 Display
4.3” TFT
 Resolution
800x480 pixels
 Contrast
800:1
 Brightness
800 cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Alarm display icons
Yes, freely configurable
 Shift lights
8 configurable RGB LEDs
 Alarm LEDs
4 configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN
 ECU compatibility
+ 1,000 industry leading ECUs
 Expansion CAN connection
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, RIO02, GS Dash, Memory Module
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
10 pushbuttons + 3 rotary switches (all with RGB backlights)
 Connectors
1 Deutsch Autosport 22 pin male connector
 Dimensions
280 x 183.5 x 42.6 mm
 Weight
2,400 g
 Power consumption
500 mA
 Waterproof
IP65

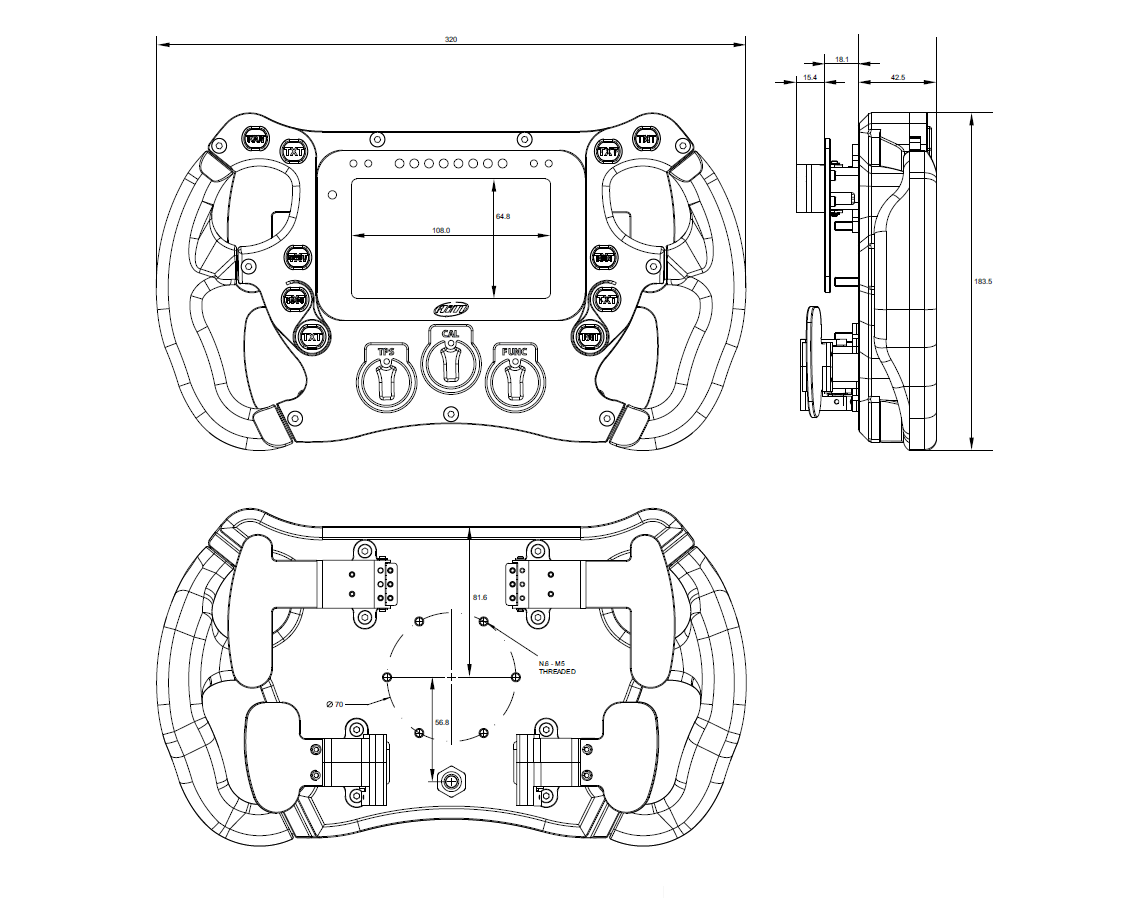

WS4 320

 Display
5” TFT
 Resolution
800x480 pixels
 Contrast
800:1
 Brightness
800 cd/m2 - 1,200 Lumen
 Ambient light sensor
Yes
 Alarm display icons
Yes, freely configurable
 Shift lights
8 configurable RGB LEDs
 Alarm LEDs
4 configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN
 ECU compatibility
+ 1,000 industry leading ECUs
 Expansion CAN connection
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, RIO02, GS Dash, Memory Module
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
10 pushbuttons + 3 rotary switches (all with RGB backlights)
 Connectors
1 Deutsch Autosport 22 pin male connector
 Dimensions
320 x 183.5 x 42.5 mm
 Weight
2,600 g
 Power consumption
500 mA
 Waterproof
IP65

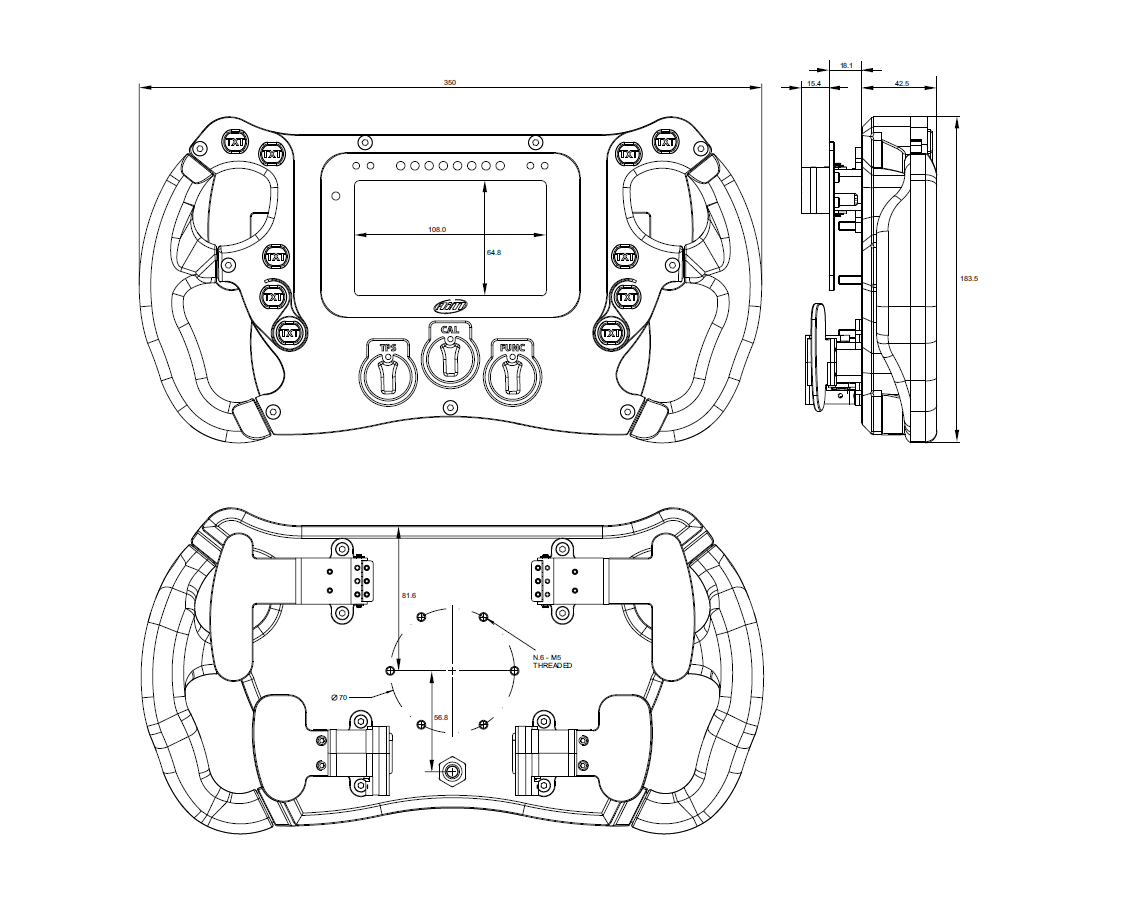

WS4 350

 Display
5” TFT
 Resolution
800x480 pixels
 Contrast
800:1
 Brightness
800 cd/m2 - 1,200 Lumen
 Ambient light sensor
Yes
 Alarm display icons
Yes, freely configurable
 Shift lights
8 configurable RGB LEDs
 Alarm LEDs
4 configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN
 ECU compatibility
+ 1,000 industry leading ECUs
 Expansion CAN connection
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, RIO02, GS Dash, Memory Module
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
10 pushbuttons + 3 rotary switches (all with RGB backlights)
 Connectors
1 Deutsch Autosport 22 pin male connector
 Dimensions
350 x 183.5 x 42.5 mm
 Weight
2,600 g
 Power consumption
500 mA
 Waterproof
IP65
