| Display |
6” TFT |
| Resolution |
800x480 pixels |
| Contrast |
600:1 |
| Brightness |
700 cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm LEDs |
9 |
| Shift lights LEDs |
10 |
| CAN connections |
2 |
| ECU connection |
Yes |
| Dedicated GPS09 Module |
Included |
| External modules |
Channel Expansion, Lambda Controller, TC Hub,
SmartyCam 3 Series |
| Wi-Fi connection |
Yes |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Connectors |

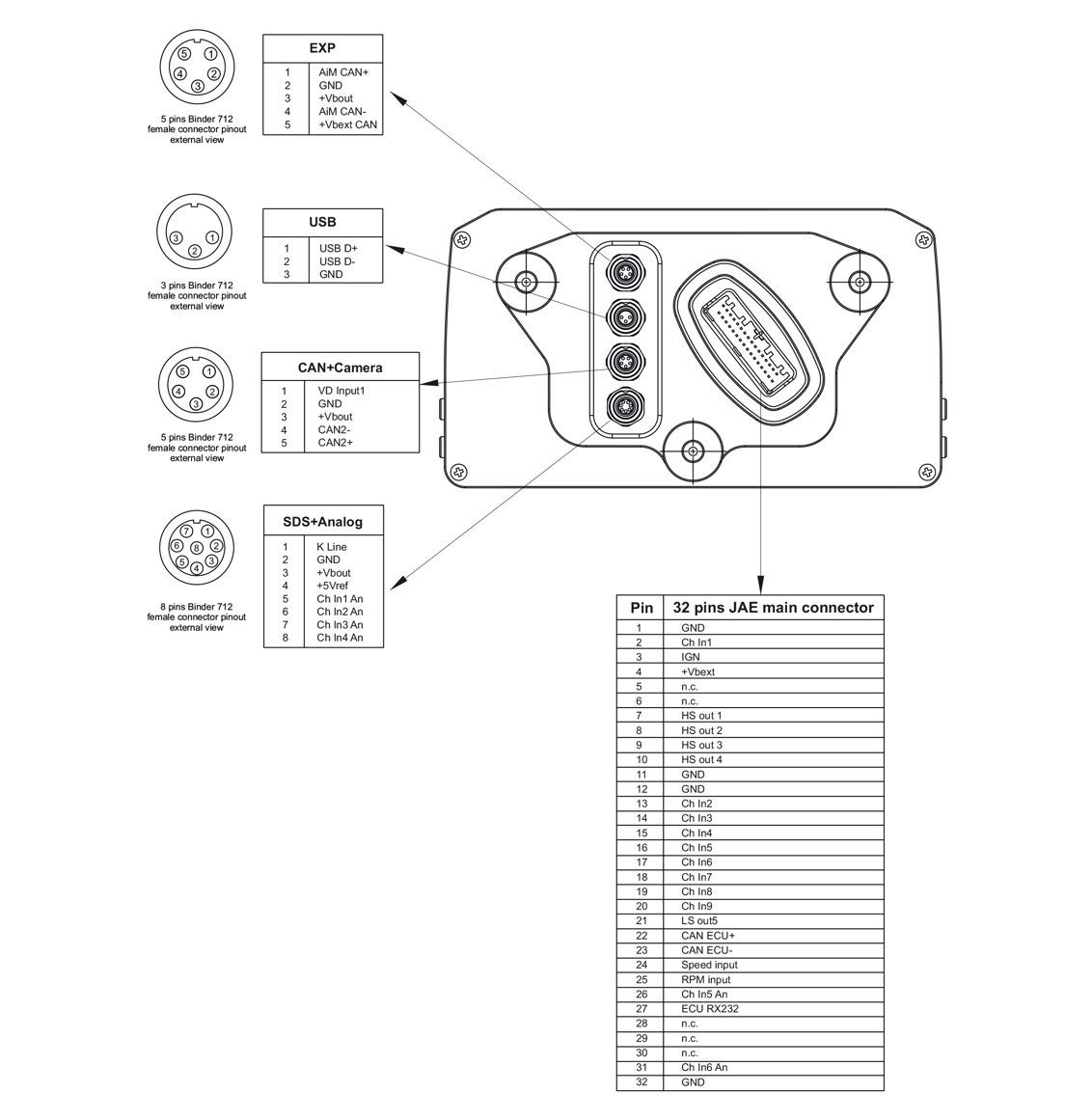

1 32 pins JAE main connector + 4 Binder 712 female connectors |
| Dimensions |

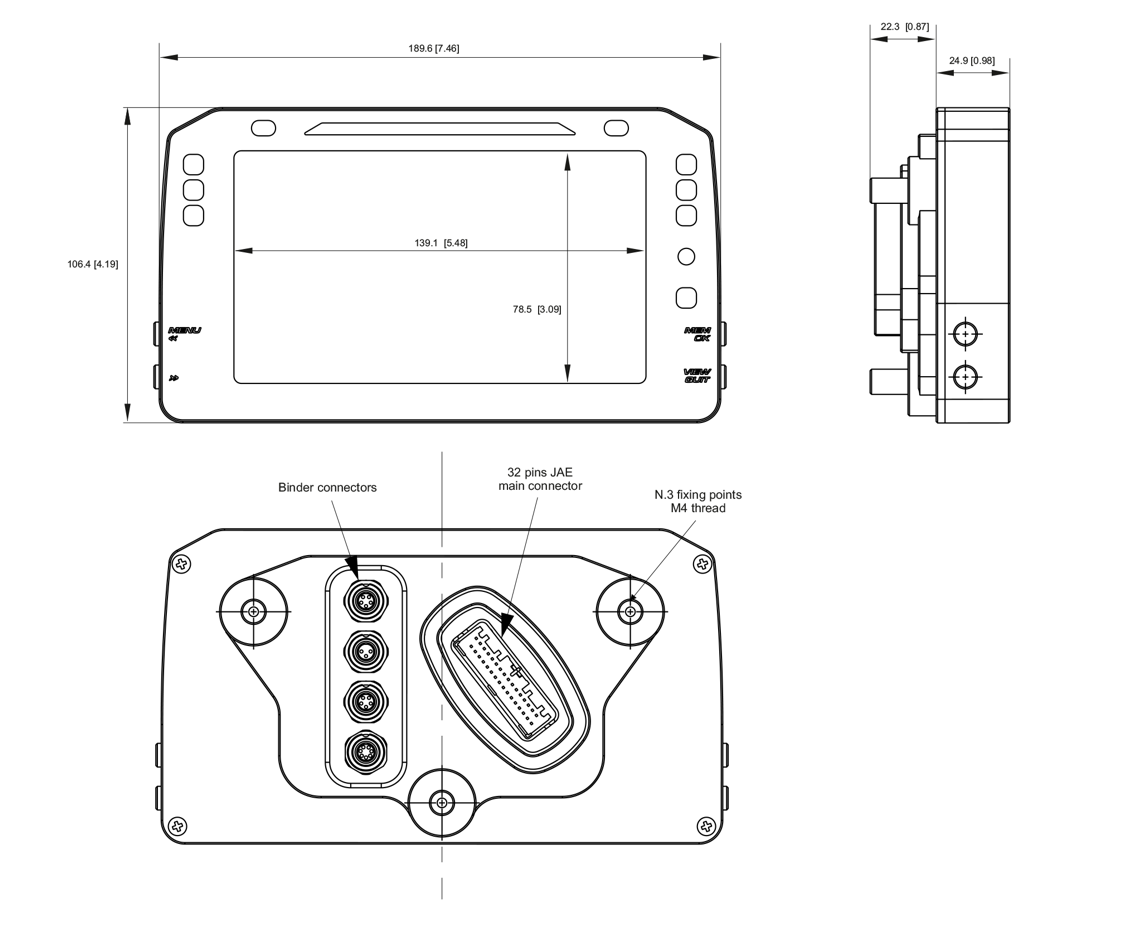

189.6 x 106.4 x 24.9 mm |
| Weight |
620 g |
| Power consumption |
400 mA |
| Waterproof |
IP65 |
|
