MX2E
RIDE LIGHTER, READ CLEARLY
GO FASTER
The brand new Plug & Play Dash Logger kit
specifically designed for Lotus Elise/Exige
Model years 2004-2007 (version with airbag only)*
2008-2010 and 2011-2020
(only compatible with Toyota engines)
* An adapter harness is required
Full Plug & Play Dash Logger Kit
Featuring an ad-hoc engineered cluster in the kit, with four integrated buttons, MX2E is designed to be easily installed on Lotus Elise/Exige (models are shown above) and it’s fully Plug & Play.

High contrast 6” TFT display 800x480 pixels
18 integrated LEDS
(10 shiftlights, 6 status information LEDs, 2 turn indicators)
14 digital switch inputs

4 integrated buttons
in cluster
CAN bus ECU interface
Rear camera input
Wi-Fi connectivity

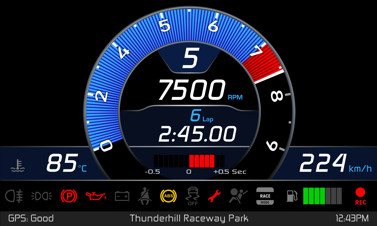

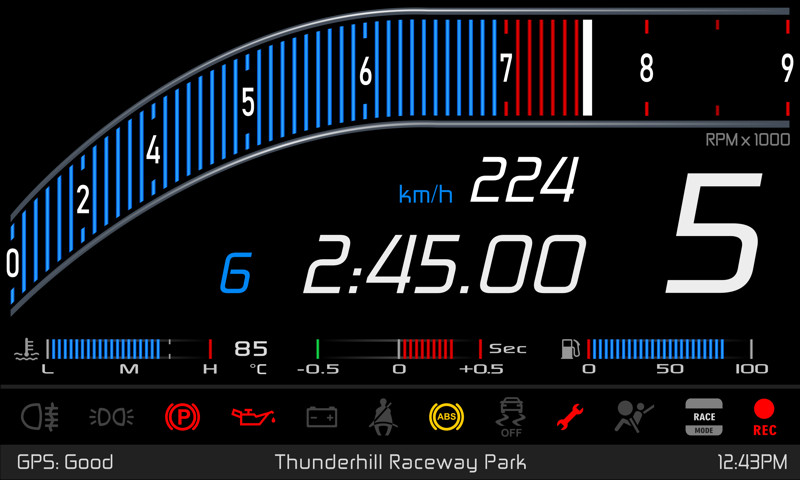

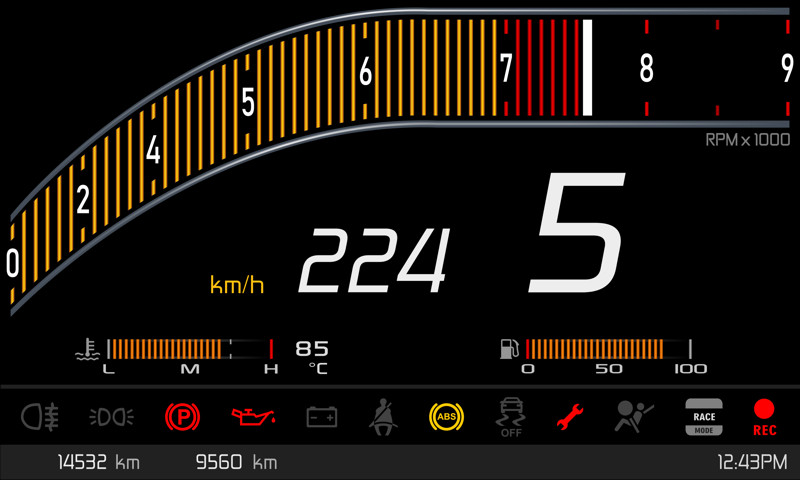

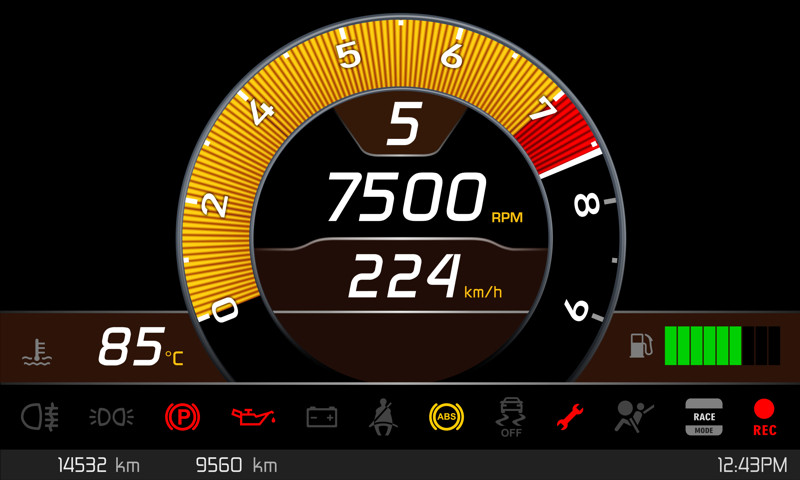

One dash, two souls

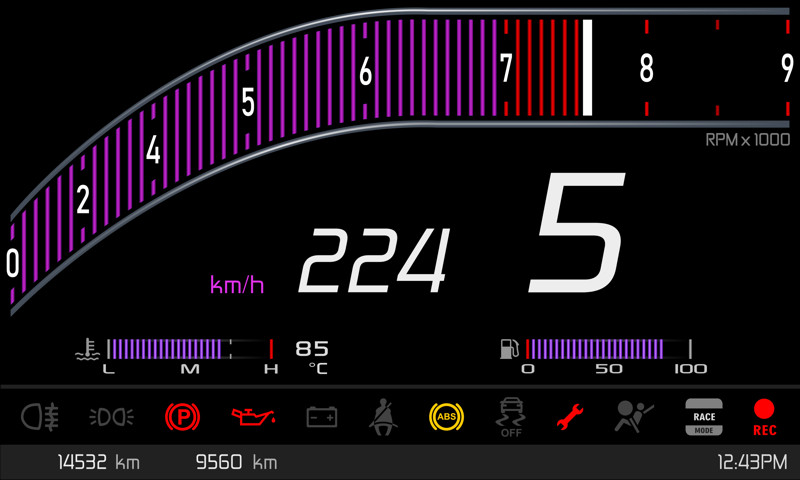

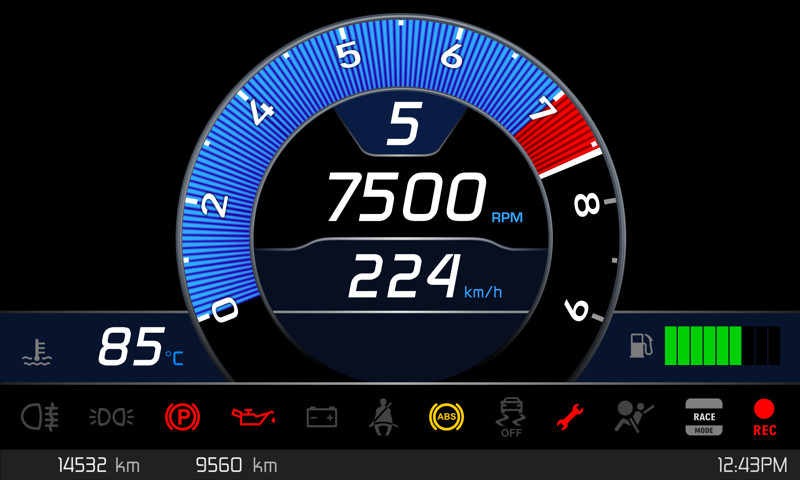

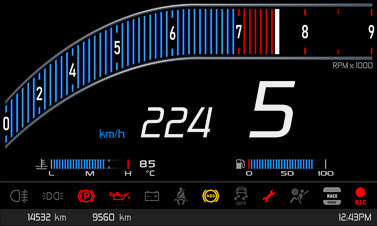

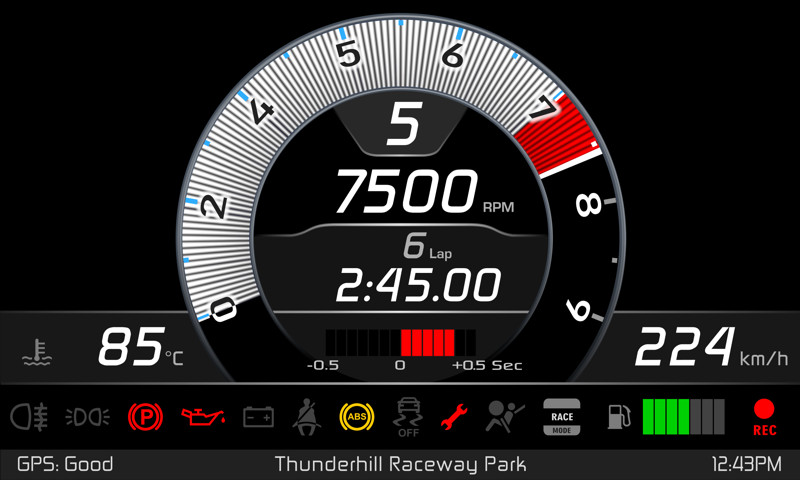

ROAD Two themes TRACK

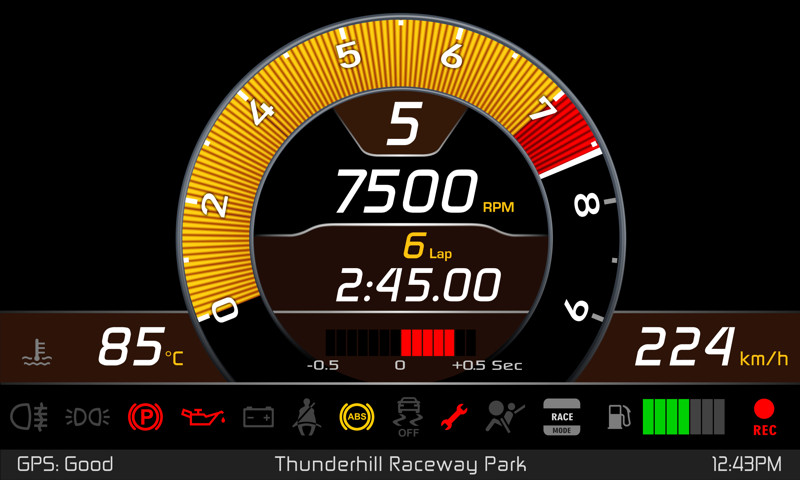

ANALOG
DIGITAL

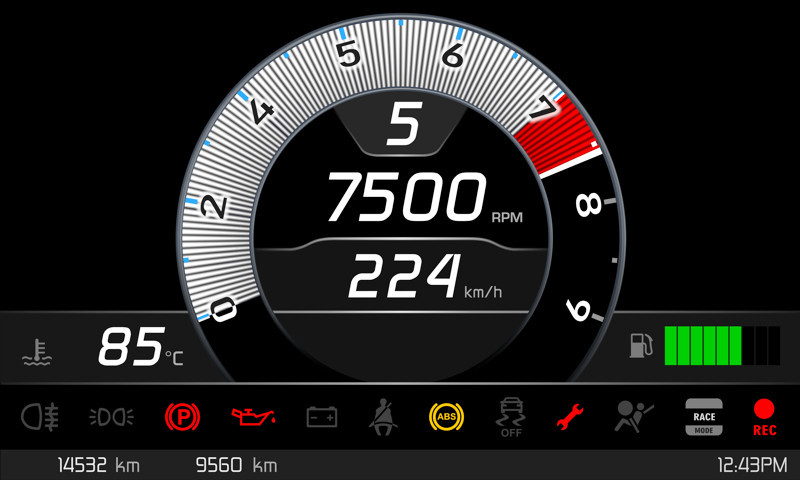

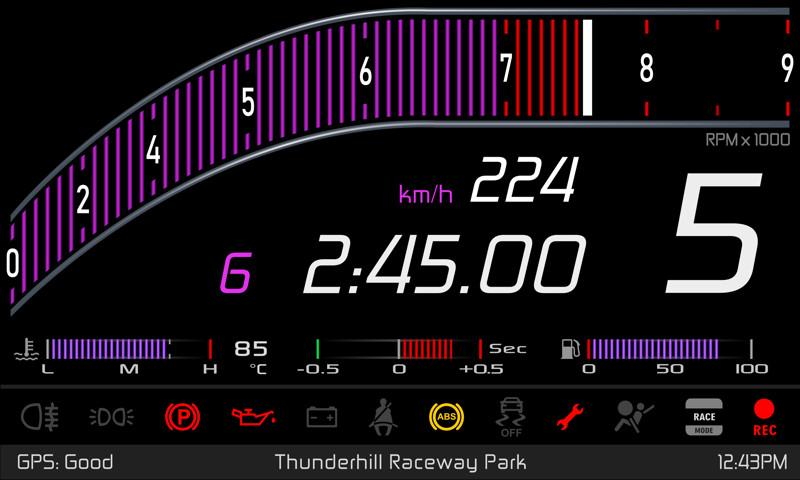

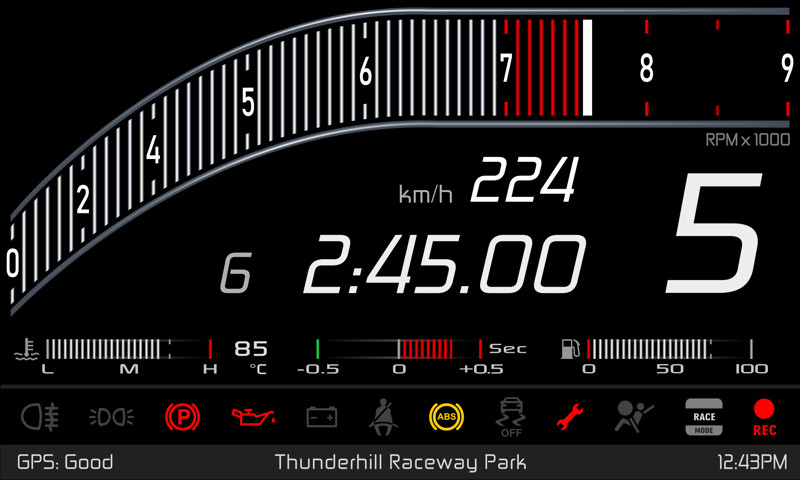

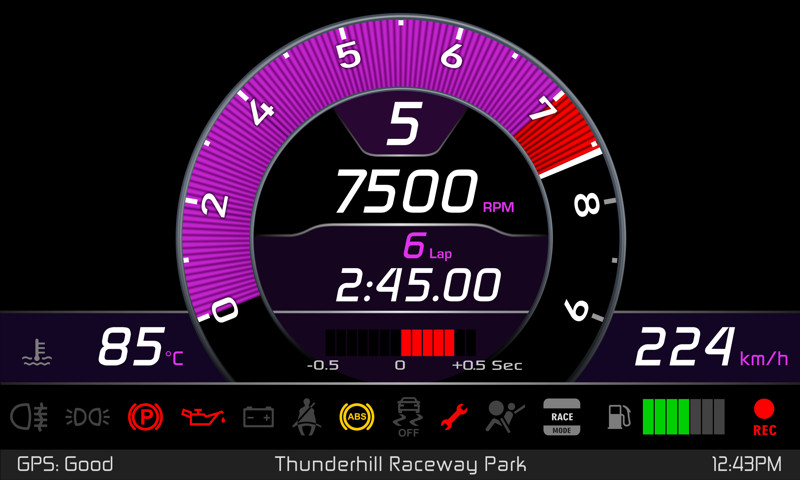

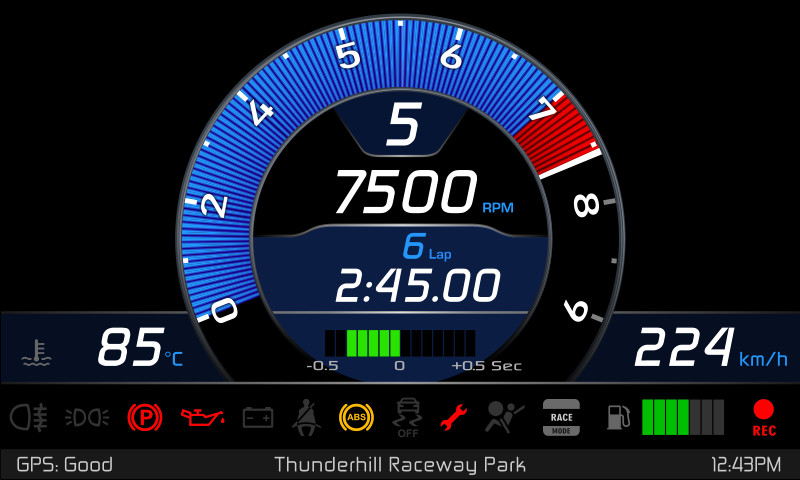

Four colors, 16 choices

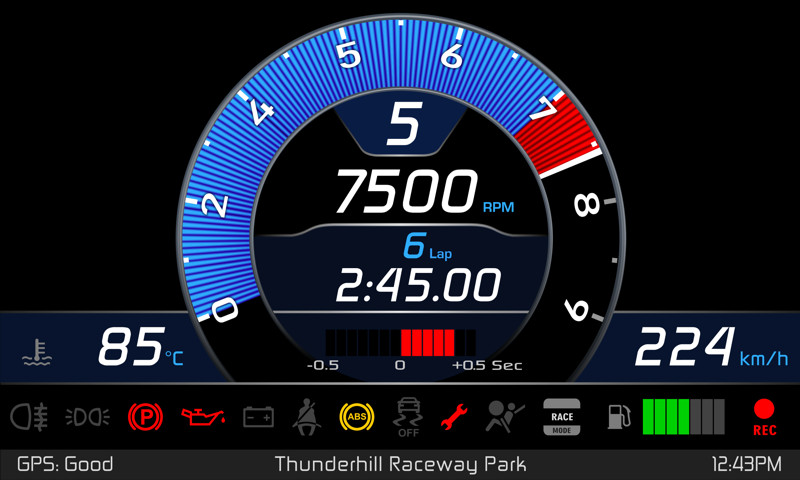

Integrated Lap Time
Thanks to the integrated GPS
and huge track database.
On the Track
...you will automatically have:

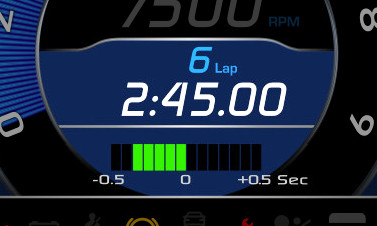

Lap Time and Predictive Lap Time

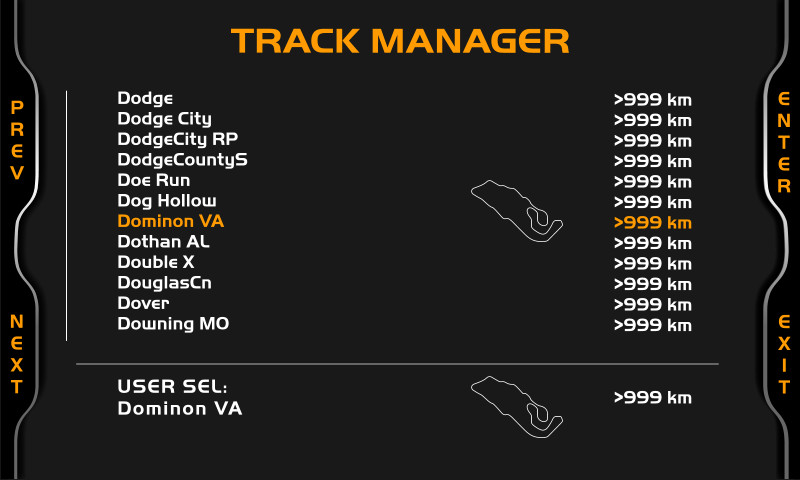

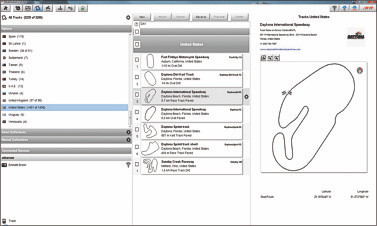

... thanks to the huge database
of 4,000 tracks in the world
... constantly updated by our technicians.

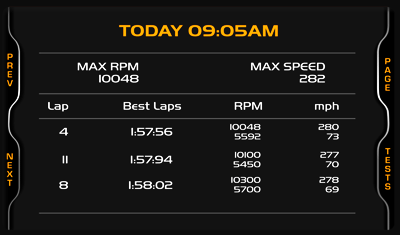

After the test
... you may look summarized data directly on your dash.

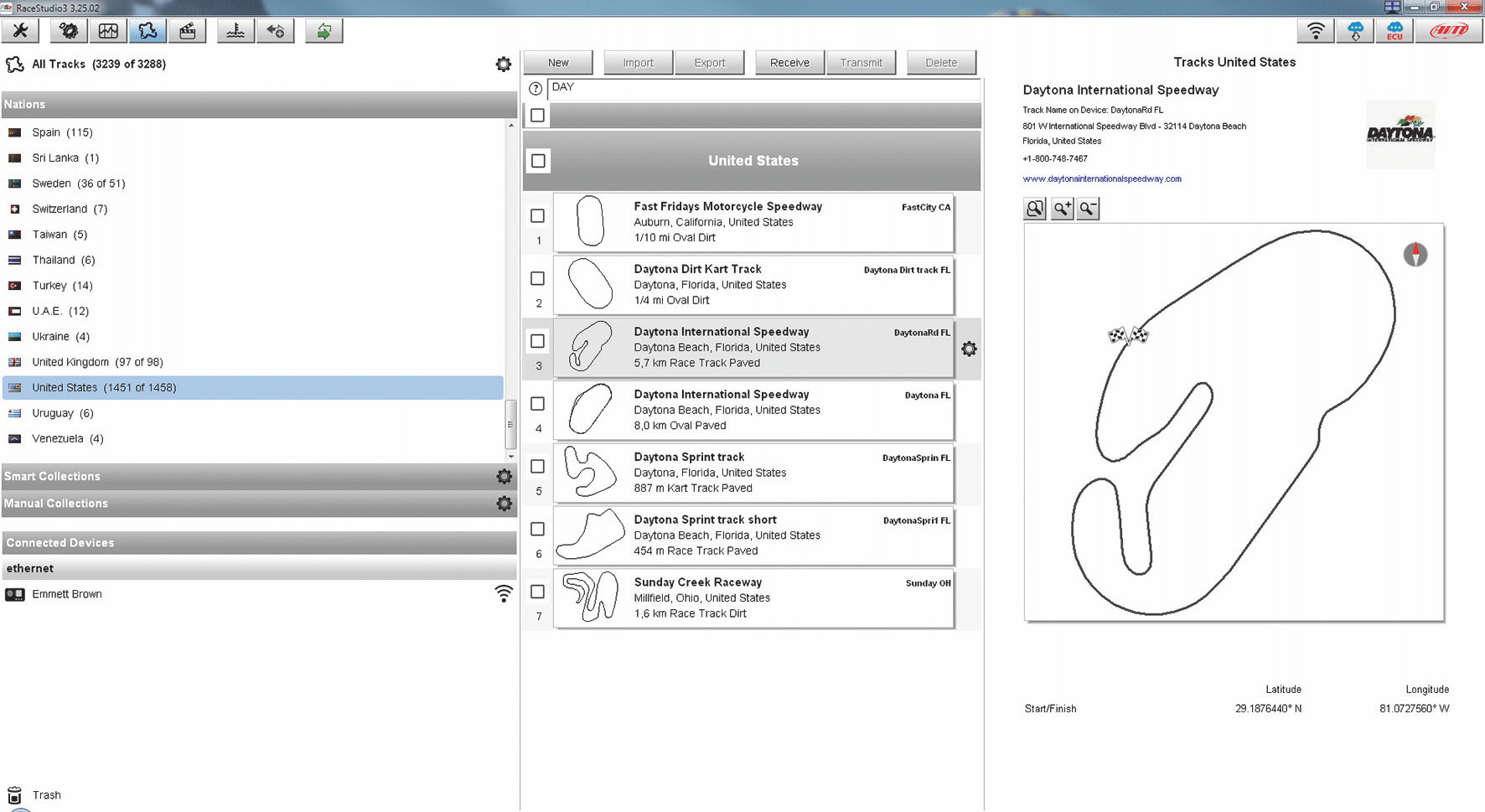

Or you can send
all recorded data to your PC
through Wi-Fi
for a professional analysis.
Not enough?
You may expand your MX2E capabilities connecting :
Lambda controller
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.
LCU-One CAN
Channel Expansion
It permits to add four 0-5 Volt analog channels for pressure, temperature sensors and potentiometers.
Channel Expansion
SmartyCam 3 cameras
The on-board cameras that overlays on videos
the data sampled by your logger.
SmartyCam HD Rev.2

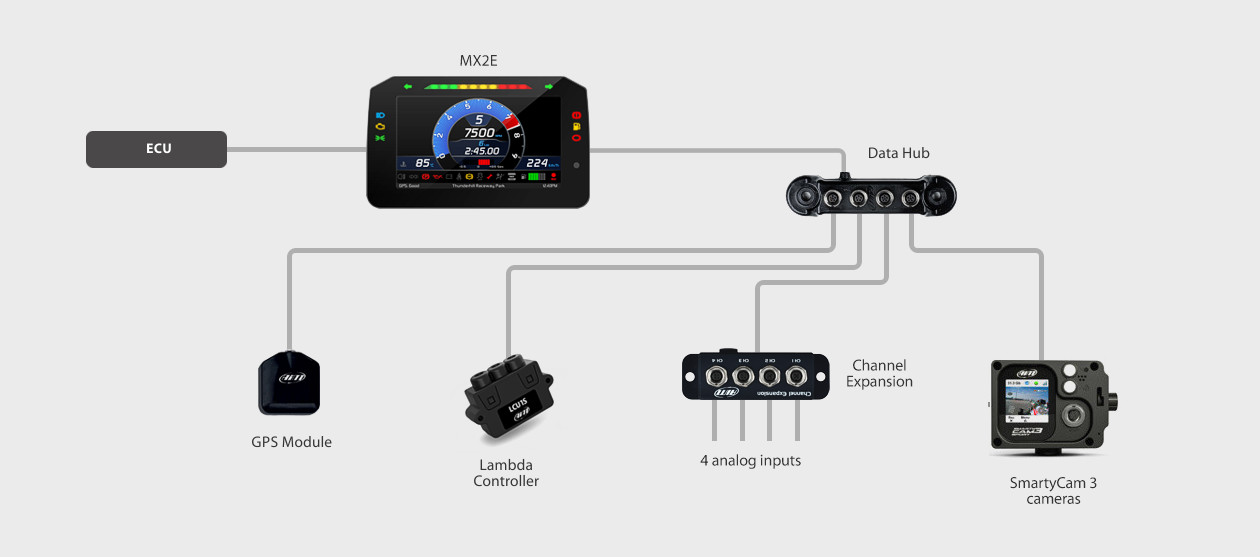

Connection example
Optional inputs for rear camera
Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management.
Optical Format 1/4 inch Color CMOS
TV system NTSC
Pixel Array 648x488
Image area 3.63mm - 2.73mm
Frame rate NTSC: 60 filed/sec
Temperature -30°/+80°
