MXP 1.3
The 6'' colour TFT dash logger for motorsports
MX Series
MXP 1.3 belongs to the MX Family, a complete range of TFT Dash & Loggers designed for Motorsport from AiM.
Click here to explore the main features of the MX Series.
USER MANUALS, PICTURES & TECH SHEETS
TECHNICAL SPECIFICATIONS
 Display
6” TFT
 Resolution
800x480 pixels
 Contrast
600:1
 Brightness
700cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Alarm display icons
Yes, freely configurable
 Alarm LEDs
5 configurable RGB LEDs
 Shift lights
10 configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN, RS232 or K-Line
 ECU compatibility
2,000+ industry leading ECUs
 Expansion CAN connection
GPS09c, Channel Expansion, TC Hub,
Lambda Controller, SmartyCam 3 Series
 Inertial platform
Internal 3 axis 5G accelerometer + 3 axis gyro max 100 Hz
 Analog inputs
8 fully configurable, max 500 Hz each
 Digital inputs
4 Speed inputs, lap signal, coil RPM input
 Digital outputs
2 (1 A max each)
 Second CAN
Yes
 Wi-Fi connection
Yes
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
Metallic

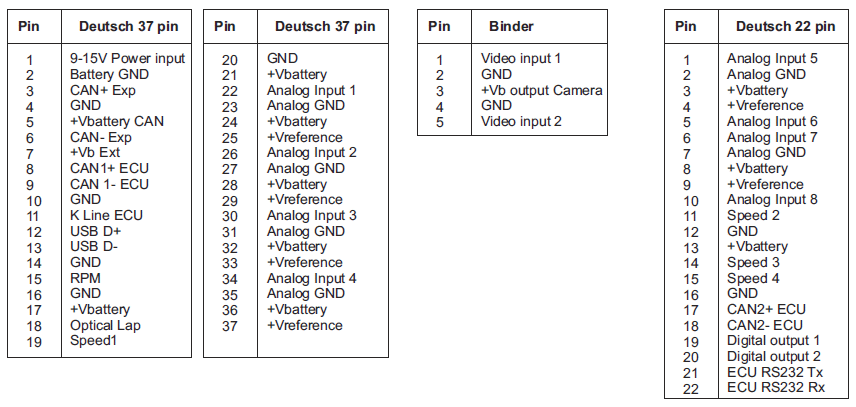

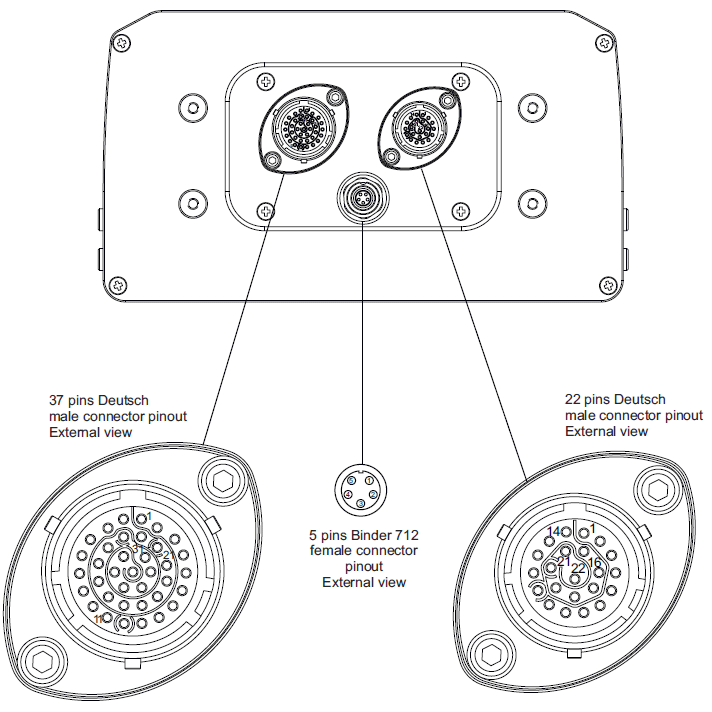

 Connectors
2 Motorsport connectors + 1 Binder connector
 Power consumption
400 mA

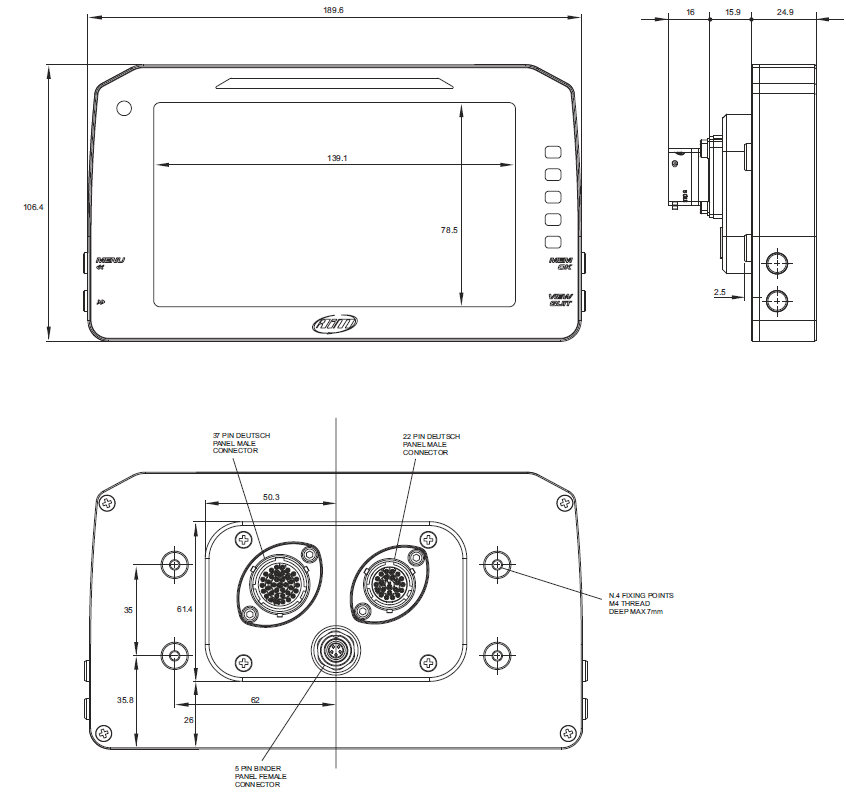

 Dimensions
189.6 x 106.4 x 24.9 mm
 Weight
640 g
 Waterproof
IP67
AVAILABLE KITS
All kits include: MXP 1.3, GPS09c with cable, USB cable, 37 pins standard harness.
User manual & Race Studio 3 software freely downloadable here.
MXP 1.3 + 1.3 m GPS09c + USB cable + 37 pins standard harness XA6MXPA13G1
MXP 1.3 + 2 m GPS09c + USB cable + 37 pins standard harness XA6MXPA20G1
MXP 1.3 + 4 m GPS09c + USB cable + 37 pins standard harness XA6MXPA40G1
MXP 1.3 + 2 m GPS09c Roof version + USB cable + 37 pins standard harness XA6MXPA20R1
MXP 1.3 + 4 m GPS09c Roof version + USB cable + 37 pins standard harness XA6MXPA40R1
ACCESSORIES
22 pins harness V02573020
22 pin female Deutsch connector 5CN822F00
37 pin female Deutsch connector 5CN837F00
Mirror camera XB1ZCAMHD00
Single RearMaster mirror camera patch cable V02573390
Double RearMaster mirror camera patch cable V02573400
Single AiM mirror camera patch cable V02551170
Double AiM mirror camera patch cable V02573410
SPARE PARTS
USB cable V02573200
37 pins standard harness V02573010
