TECHNICAL SPECIFICATIONS
 Connection
Connection to MyChron5 via IR Temperature Controller
 Output signal
0-5V
 Field of View
35
 Temperature range
-20/120C

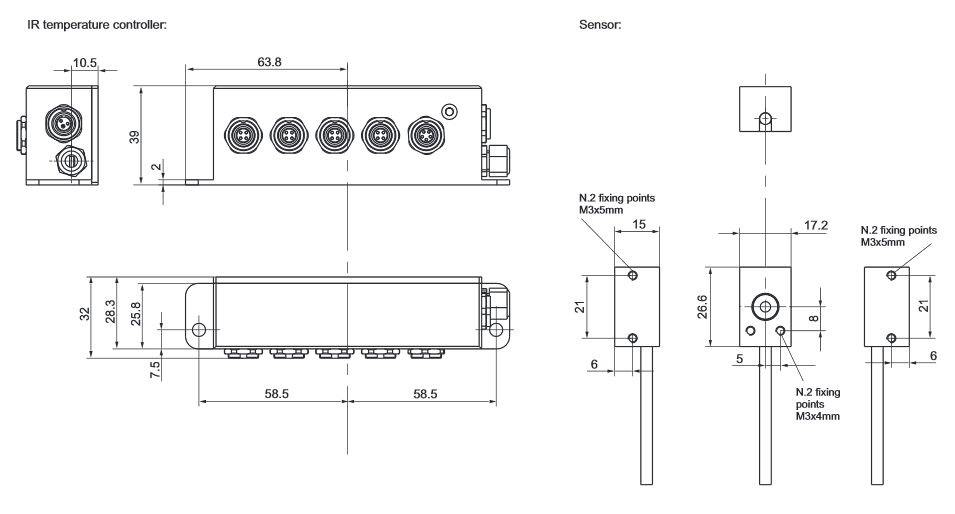

 IR temperature controller dimensions
127.6 x 32 x 39 mm
 Sensor dimensions
26.6 x 17.2 mm
 Sensor cable length
250 mm
 IR temperature controller cable length
400 mm
IN THE BOX
IR temperature controller, four tire temperature sensors, power cable, two 4 pin 712+719 patch cables 1 m length, two 4 pin 712+719 patch cables 2 m length.
