TECHNICAL SPECIFICATIONS
 Display resolution
268 x 128 pixels
 Backlight
7 configurable RGB colors
 Ambient light sensor
Yes
 Shift lights
5 configurable RGB LEDs
 Alarm LEDs
2 configurable RGB LEDs
 CAN connections
2
 ECU connections
CAN, RS232 or K-Line
 ECU compatibility
+1,000 industry leading ECUs
 GPS
Integrated
 External modules
Lambda Controller and SmartyCam HD
 Analog inputs
4 fully configurable, max 1,000 Hz each
 Digital inputs
2 speed inputs, coil RPM input
 Digital outputs
2 high-side
 Inertial platform
Internal 3 axis 5G accelerometer + 3 axis gyro
+ 3 axis magnetometer
 Wi-Fi connection
Yes
 Internal memory
4 GB
 Body
Glass fiber reinforced Nylon
 Pushbuttons
Metallic
 Connectors
37 pins Motorsport connector + 4 pins power connector

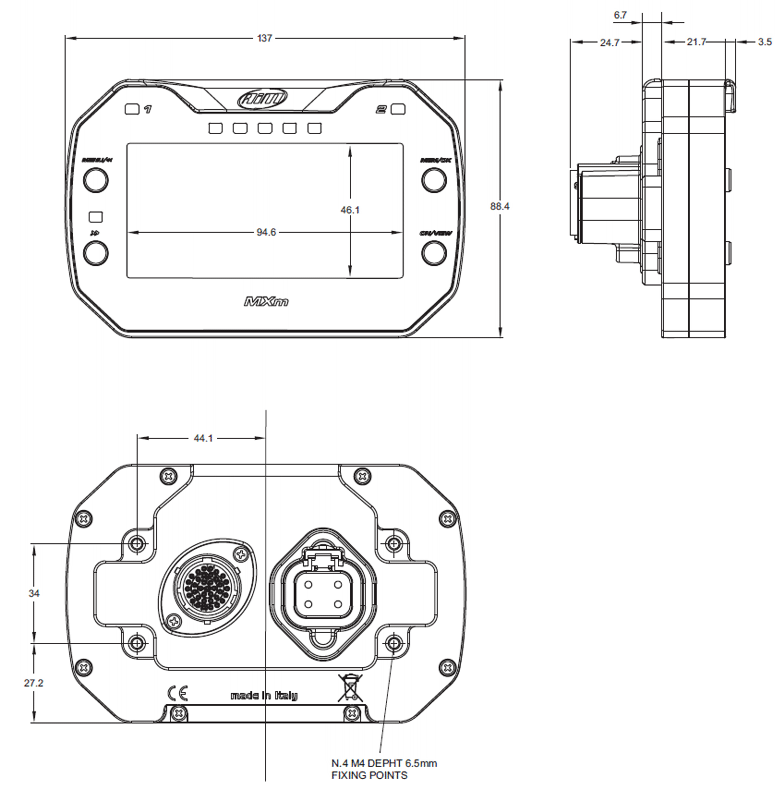

 Dimensions
137x88.4x31.9 mm
 Weight
330 g
 Waterproof
IP65
IN THE BOX
MXm, USB cable, 37 pins standard harness, power cable, Race Studio 3 software.
