TECHNICAL SPECIFICATIONS
Sensor
Gauge
Sensor
1 measurement point
Field of View 12°
Temperature range -60/550°F
Real-time Temperature Tracking
Average Temperature Tracking
Tracks average temperatures over the last 15', 30' or 90' of run-time
Gauge
RGB LED Alert: the LED starts blinking red when temperature exceeds the user defined level
Anti-Glare TFT Display
Anodised aluminum body
Vibration proof
IP65 Water-Resistant
Sensor pinout

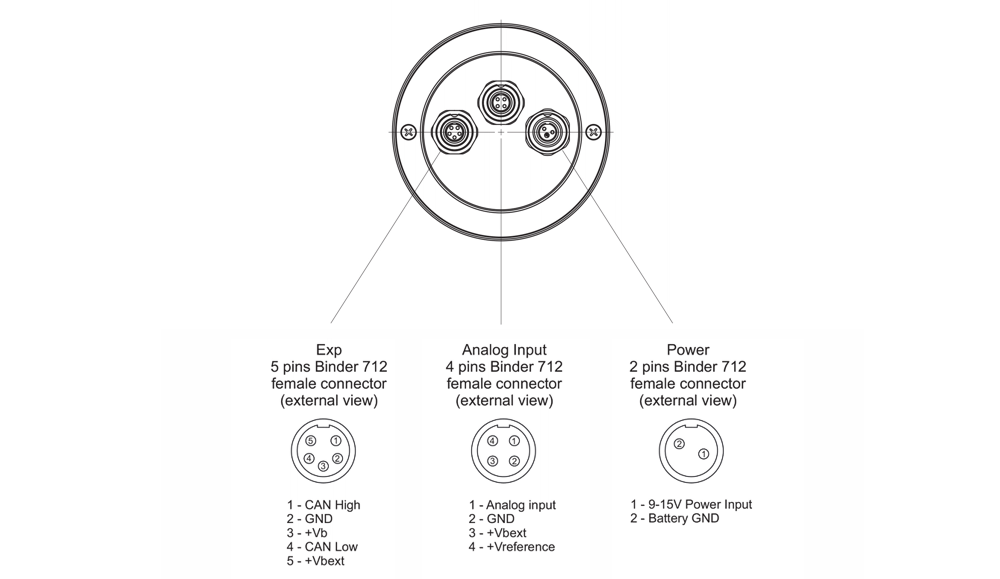

Gauge pinout
