EVO4 Data Logger

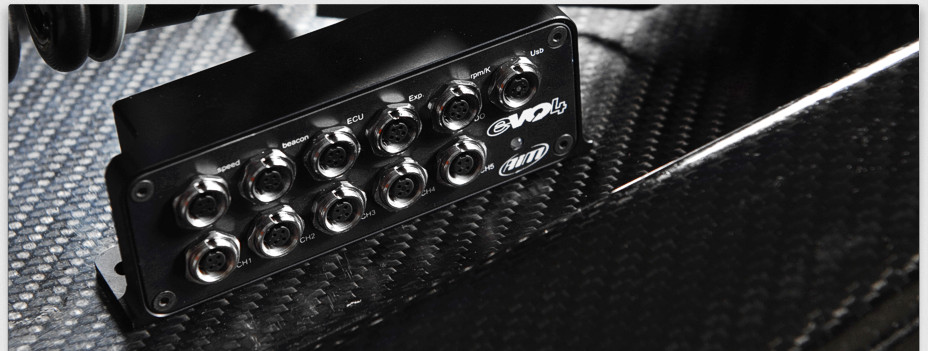

EVO4 is a professional, modular datalogger with integrated GPS. Robust and compact, EVO4 can be easily placed in any vehicle. Its configuration with Race Studio 2 software is simple and immediate.
Read your sensors in 5 different ways
EVO4 samples all information you need: data coming from the Engine Control Unit (ECU) via CAN, serial line or OBDII, from the internal three-axial accelerometer, from the integrated GPS, which permits an automatic and precise lap time calculation.
Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.
ECU
connection
Integrated
GPS
Sensors
Expand your system according to your needs
EVO4 is a modular logger, offering the opportunity to increase the number of channels, adding via CAN the following items:
Channel Expansion Channel Expansion
It permits to add 4 0-5Volt analog channels.
TC Hub TC Hub
It adds 4 K thermocouples.
LCU-One Lambda Controller LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
SmartyCam HD cameras SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Connection
example
Choose the ideal display for your vehicle
To visualize in real time all the data EVO4 can be connected to a visor of the "Dash" line (MXL Dash - G-Dash) or to one of the professional AiM steering wheels with integrated display (Formula - GT Steering Wheels).
MXL Dash G-Dash
MXL Dash
G-Dash
Formula Steering Wheel 2 Formula Steering Wheel 2
Formula Steering Wheel 2
GT Steering Wheels
Download data on your PC for analysis with Race Studio
Data recorded by EVO4 can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
Race Studio Analysis screenshot
